System Inspection

Inspection Condition	Inspection Procedure	Reference

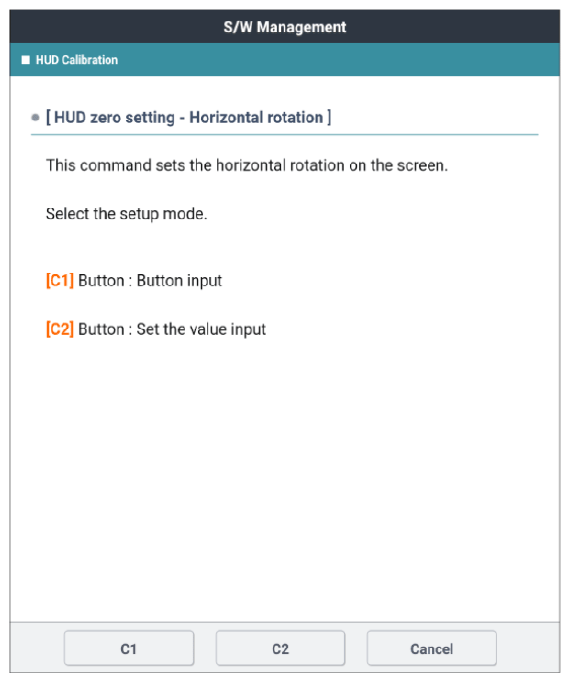

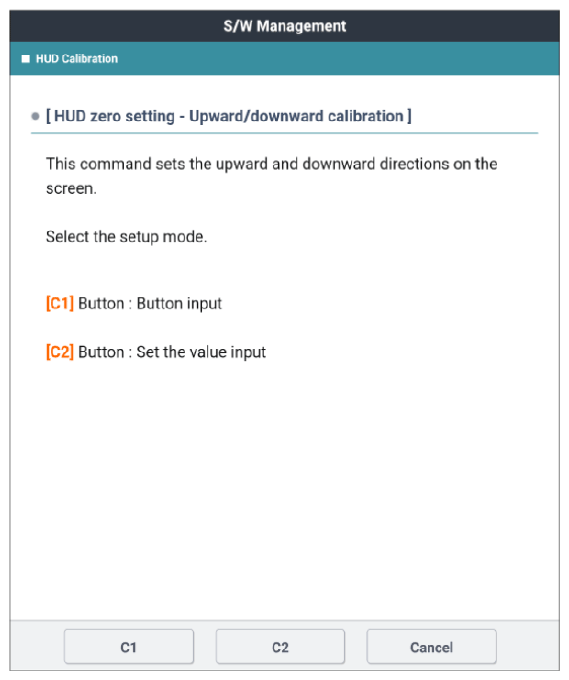

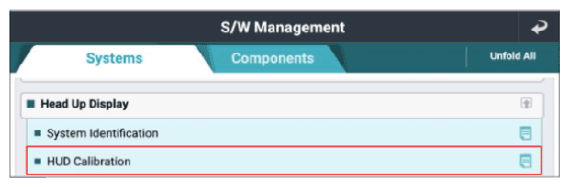

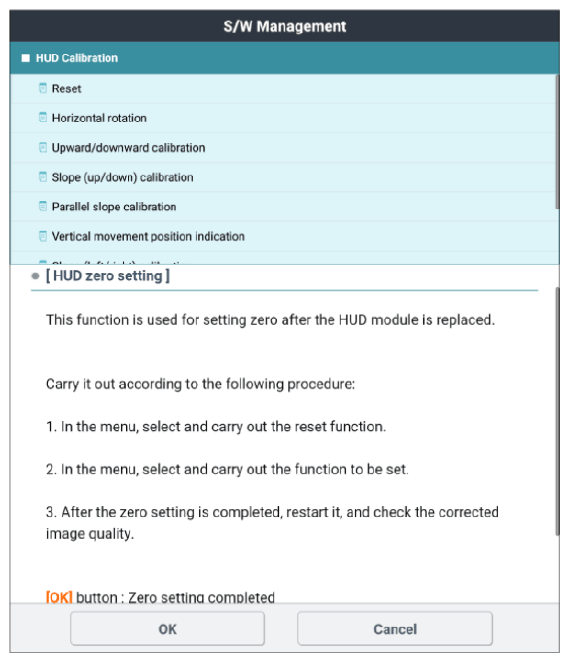

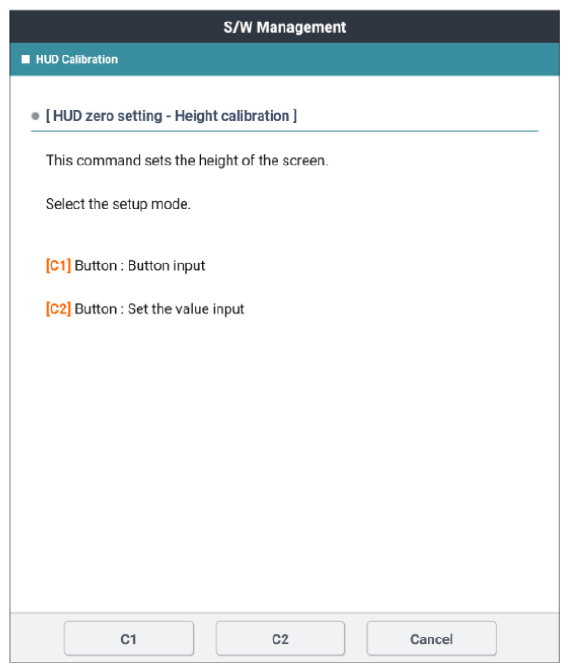

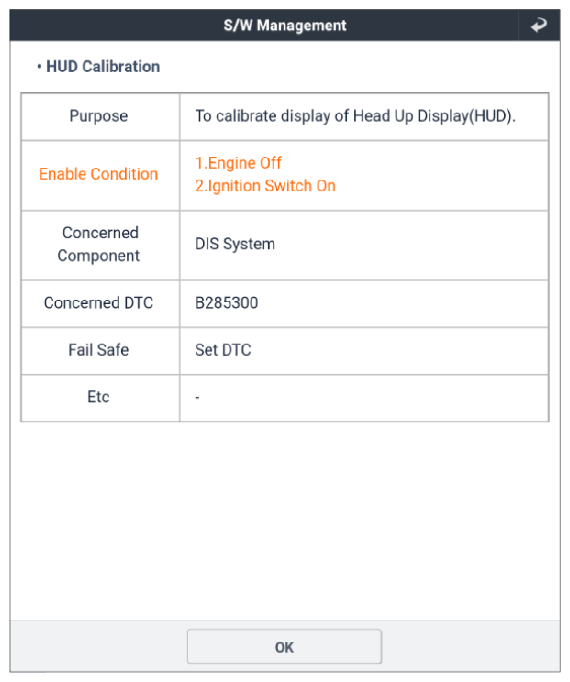

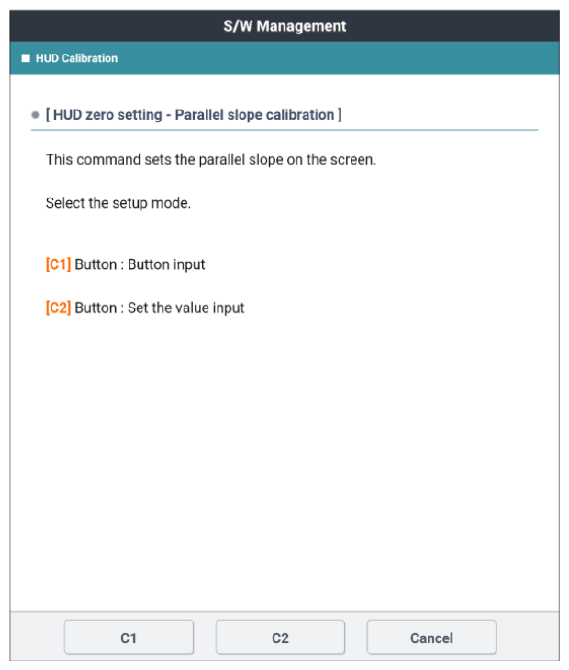

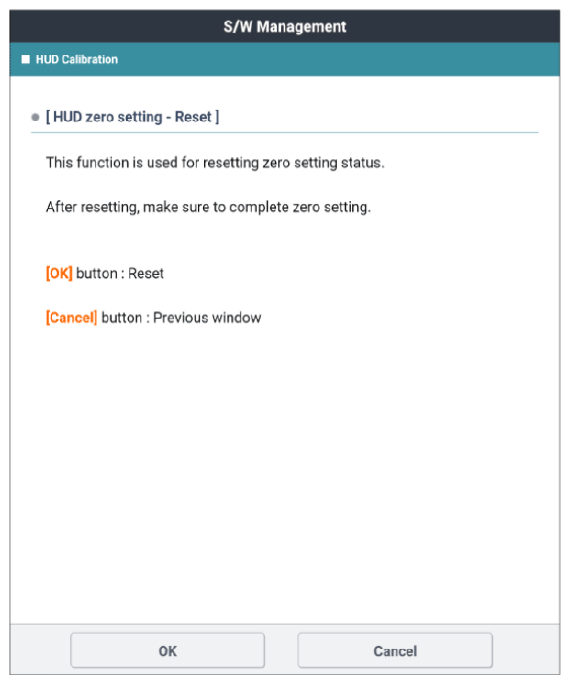

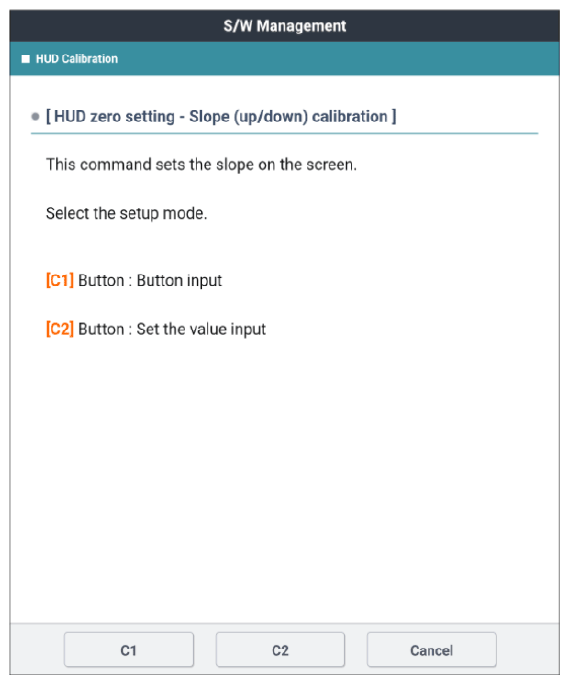

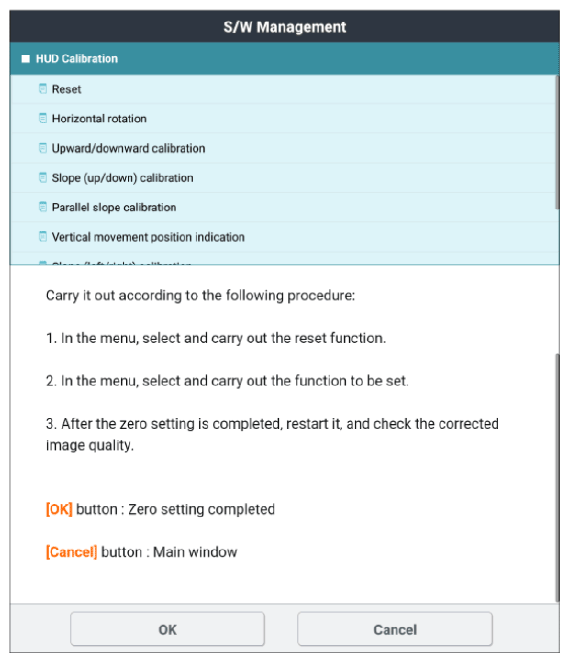

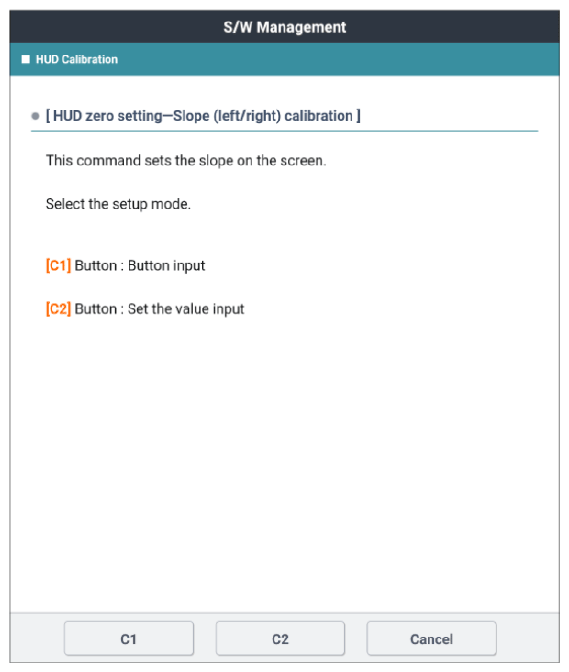

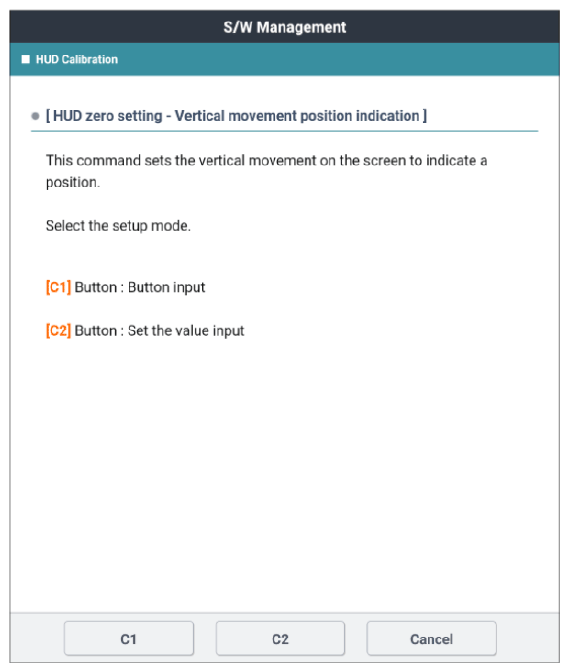

Ignition "ON".	Connect KDS to "Data Link Connector (DLC)". Select "Vehicle S/W Management" with KDS. Select "HUD Calibration" with KDS. go to "VERIFICATION OF REPAIR " procedure after image calibration.	Fig.1 to 15

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

If the DTC erase, substitute with a known-good unit and check for proper operation. If the problem is corrected, replace the unit and go to "VERIFICATION OF REPAIR " procedure.
Repair as necessary and go to "VERIFICATION OF REPAIR " procedure.

No Good
