Removal And Installation

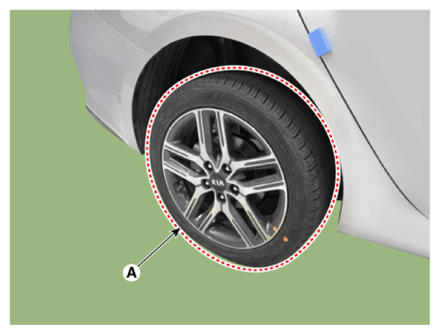

Remove the rear wheel and tire (A).
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Be careful not to damage to the hub bolts when removing the rear wheel and tire.

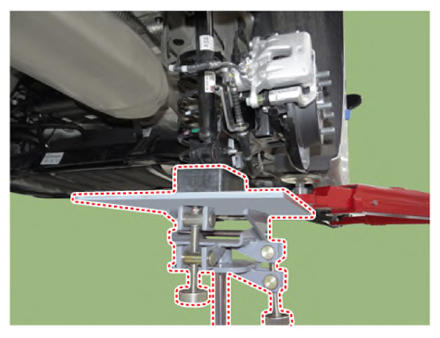

Support the jack to torsion bead axle.

Courtesy of KIA MOTORS AMERICA, INC.

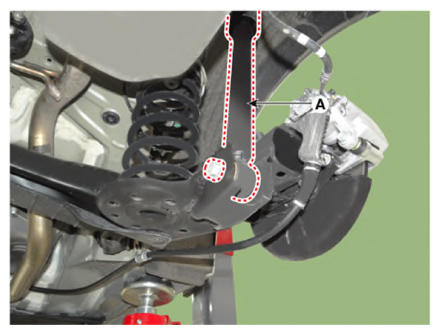

Loosen the lower mounting bolt and then detach the rear shock absorber (A).
Tightening torque:

98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

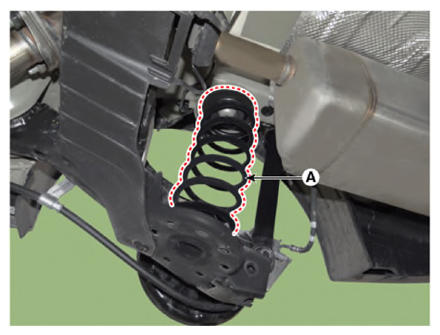

Remove the coil spring (A).

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Check the wheel alignment.
(Refer to Rear Suspension System - "REAR ALIGNMENT ")
