Ventilation Seat Blower

  1. Disconnect the negative (-) battery terminal.
  2. Remove the driver/passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

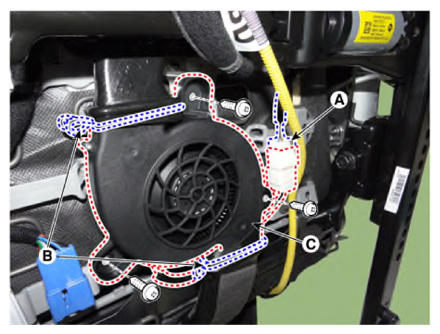

  3. Remove the blower (C) by loosening the screws and clips (B) after disconnecting the connector (A).
    G13306223Courtesy of KIA MOTORS AMERICA, INC.
