Driver/Passenger Seat Heater Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

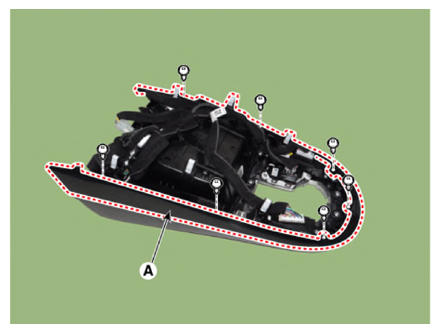

  3. Remove the console upper cover garnish (A) after loosening the screws.
    G13306213Courtesy of KIA MOTORS AMERICA, INC.

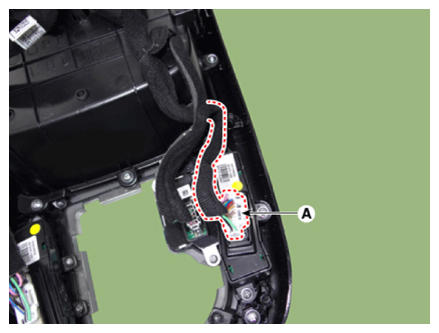

  4. Disconnect the heater switch connector (A).

    [Driver side]

    G13306214Courtesy of KIA MOTORS AMERICA, INC.

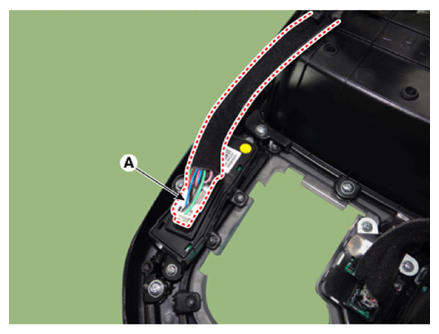

    [Passenger side]

    G13306215Courtesy of KIA MOTORS AMERICA, INC.

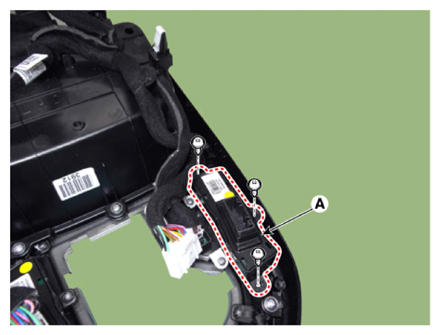

  5. Remove the heater switch (A) after loosening the screws.

    [Driver side]

    G13306216Courtesy of KIA MOTORS AMERICA, INC.

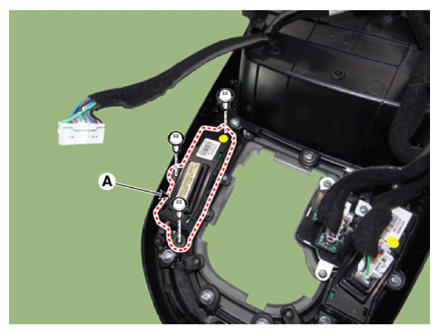

    [Passenger side]

    G13306217Courtesy of KIA MOTORS AMERICA, INC.
