Rear Seat Heater

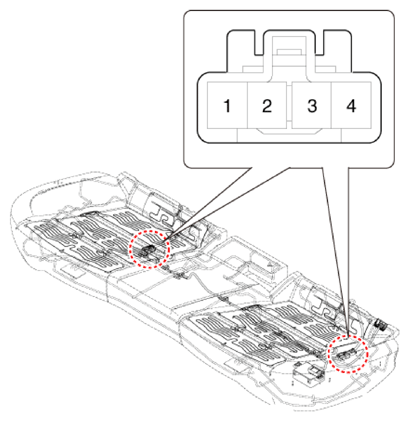

  1. Check for continuity and measure the resistance between terminals No 1 and No 4.
    G13306201Courtesy of KIA MOTORS AMERICA, INC.

    Standard value:  3.74Ω±10%/22°C
