Circuit Inspection

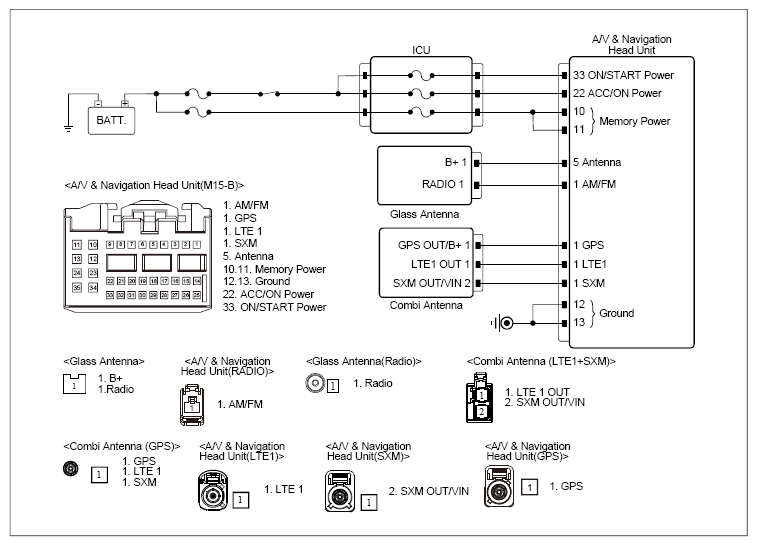

G13301231

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF" Disconnect the electrical connector(s) from the concerned component.	Combination antenna connector	1 (AM/FM OUT)	A/V & Navigation head unit connector	1 (AM/FM)	Approx. below 1Ω
	Combination antenna connector	1 (AM/FM OUT)	Chassis ground	-	∞ (Infinity)Ω

Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the A/V & navigation head unit and go to "VERIFICATION OF REPAIR " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If no problems were found with the circuits or connectors, replace the combination antenna connector and go to "VERIFICATION OF REPAIR " procedure.
