Circuit Inspection

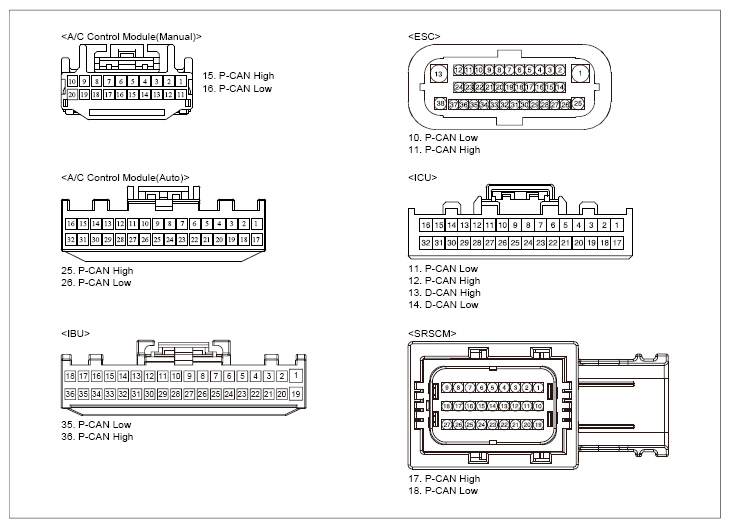

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

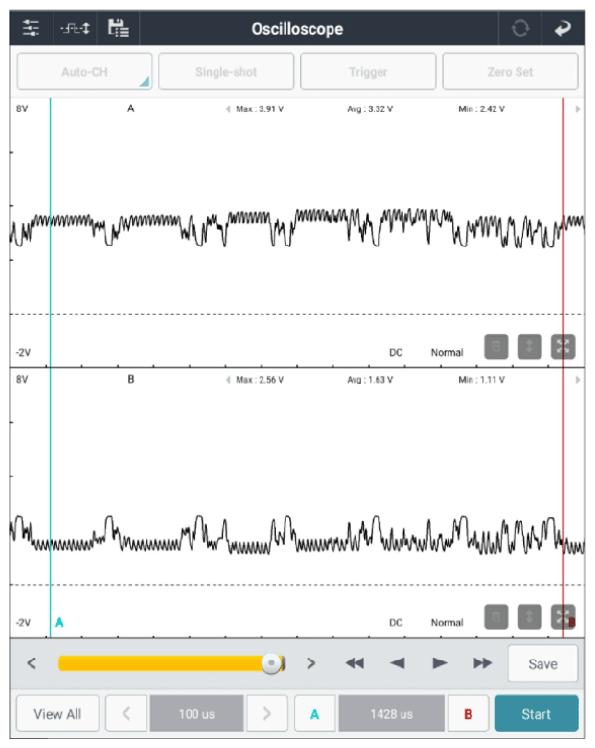

IBU harness connector | 36 (P-CAN high) | Chassis ground | - | Fig.1 |
| IBU harness connector | 35 (P-CAN low) | Chassis ground | - | ||
|
IBU harness connector | 36 (P-CAN high) | Chassis ground | - | ∞ (infinite)Ω |
| IBU harness connector | 35 (P-CAN low) | Chassis ground | - | ∞ (infinite)Ω | |

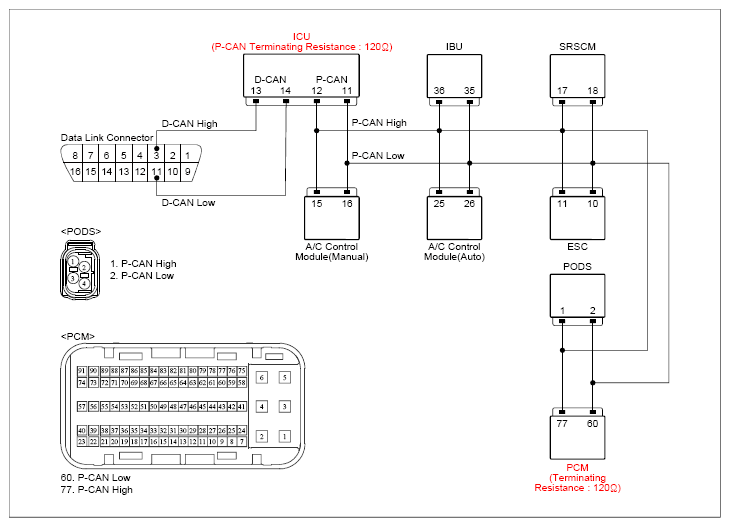

| IBU harness connector | 36 (P-CAN high) | ICU harness connector | 12 (P-CAN high) | Approx. below 1Ω | |
| IBU harness connector | 35 (P-CAN low) | ICU harness connector | 11 (P-CAN low) | Approx. below 1Ω | |
| ECM/PCM (component side) | 77 (P-CAN high) | ECM/PCM (component side) | 60 (P-CAN low) | Approx. 120Ω | |
| ICU (component side) | 12 (P-CAN high) | ICU (component side) | 11 (P-CAN low) | Approx. 120Ω | |
Good
- Disconnect P-CAN communication units one by one and monitor DTC to find the cause.
- If the DTC erase, substitute with a known-good unit and check for proper operation. If the problem is corrected, replace the unit and go to "VERIFICATION OF REPAIR " procedure.
No Good
- Check for open, short to battery/ground in P-CAN line.
- Repair as necessary, go to "VERIFICATION OF REPAIR " procedure.
