Accessories & Equipment
>>
Collision/Avoidance
>>
Rear View Monitor (RVM)
>>
Troubleshooting
>>
Diagnosis Procedure Of Each Symptom
>>

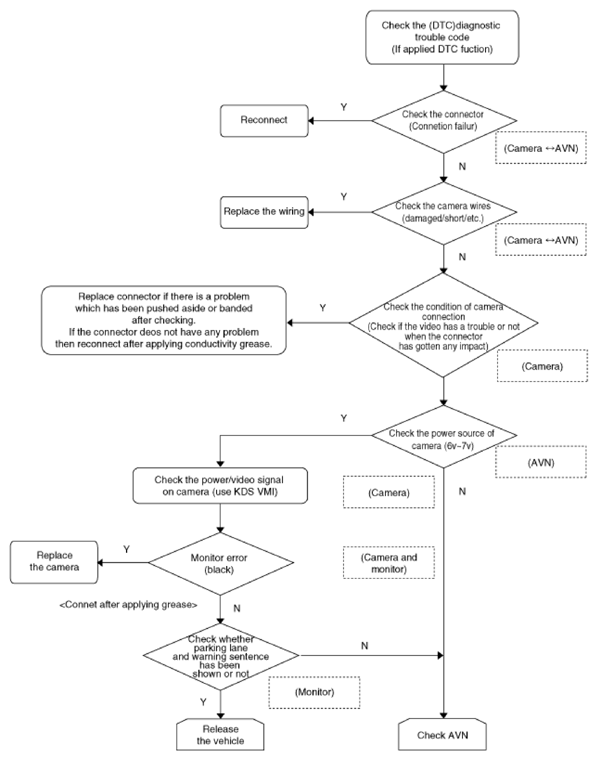

R-1. Inspect in following order when black screen has been occurred (camera - AVN direct connection specification)
R-1. Inspect in following order when black screen has been occurred (camera - AVN direct connection specification)
Courtesy of KIA MOTORS AMERICA, INC.
