Inspection Procedure

CAUTION: * Perform the "Variant Coding" and "Radar Sensor Alignment (SCC/FCA)" on "Vehicle S/W Management", once SCC (FCA) ECU is replaced.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to Data Link Connector (DLC).
  2. Perform "Vehicle S/W Management" of concerned component with KDS.
 Fig.1 to 4
Fig.5 to 8
G13293305Courtesy of KIA MOTORS AMERICA, INC.

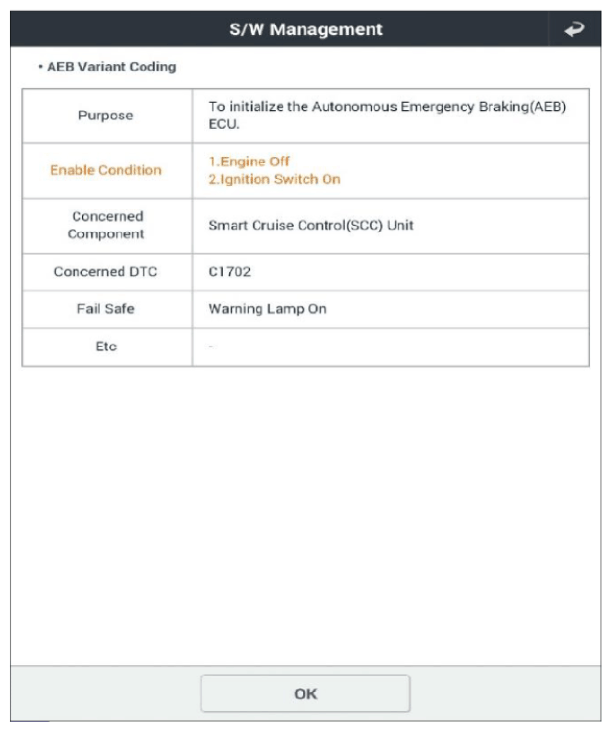

G13293306Courtesy of KIA MOTORS AMERICA, INC.

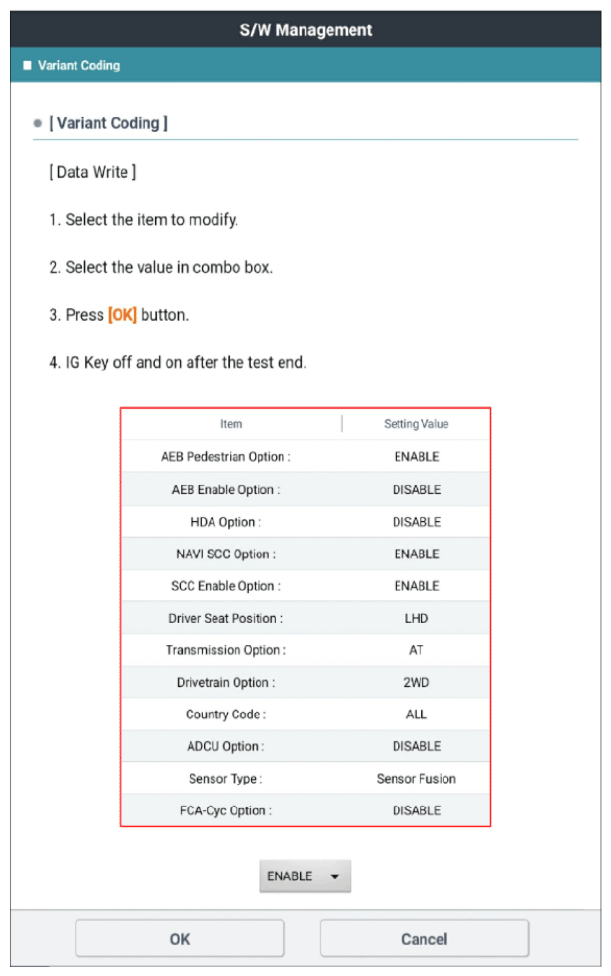

G13293307Courtesy of KIA MOTORS AMERICA, INC.

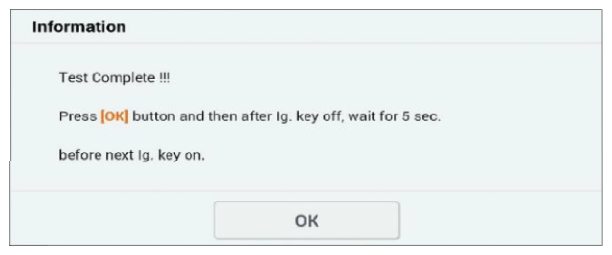

G13293308Courtesy of KIA MOTORS AMERICA, INC.

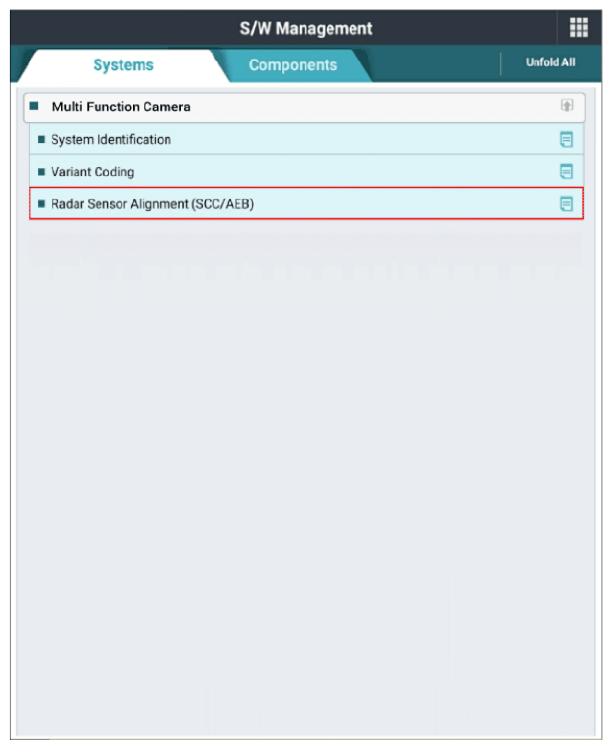

G13293309Courtesy of KIA MOTORS AMERICA, INC.

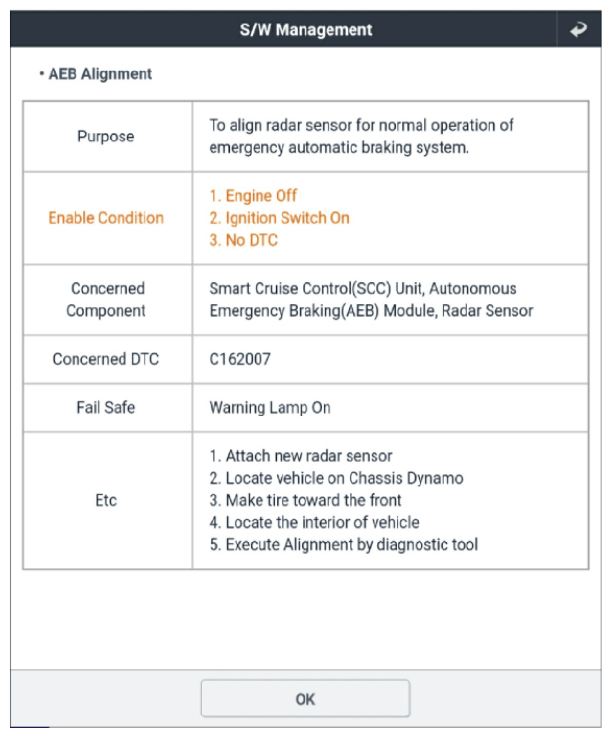

G13293310Courtesy of KIA MOTORS AMERICA, INC.
G13293311Courtesy of KIA MOTORS AMERICA, INC.
G13293312Courtesy of KIA MOTORS AMERICA, INC.
