Circuit Inspection

G13293021

Courtesy of KIA MOTORS AMERICA, INC.

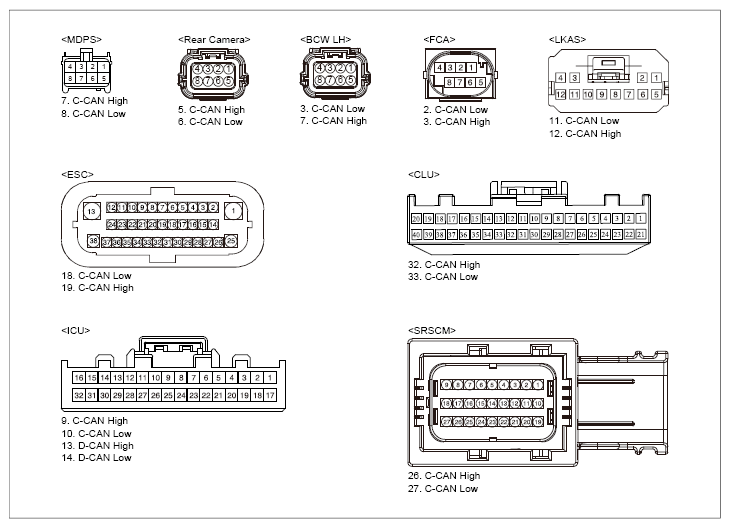

G13293022

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	SCC (FCA) connector	3 (C-CAN high)	Chassis ground	-	Fig.1
Ignition "ON".	SCC (FCA) connector	2 (C-CAN low)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect battery (-) cable. Wait for approx. 4min.	SCC (FCA) connector	3 (C-CAN high)	SCC (FCA) connector	2 (C-CAN low)	Approx. 60Ω
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	ICU (component side)	9 (C-CAN high)	ICU (component side)	10 (C-CAN low)	Approx. 120Ω
	CLU (component side)	32 (C-CAN high)	CLU (component side)	33 (C-CAN low)	Approx. 120Ω

G13293023

Courtesy of KIA MOTORS AMERICA, INC.

Good

Check CLU, ICU, SCC (FCA) Module connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing SCC (FCA) module, perform following "System Inspection" procedure.

No Good

Check for open/short in harness.
Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
