Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

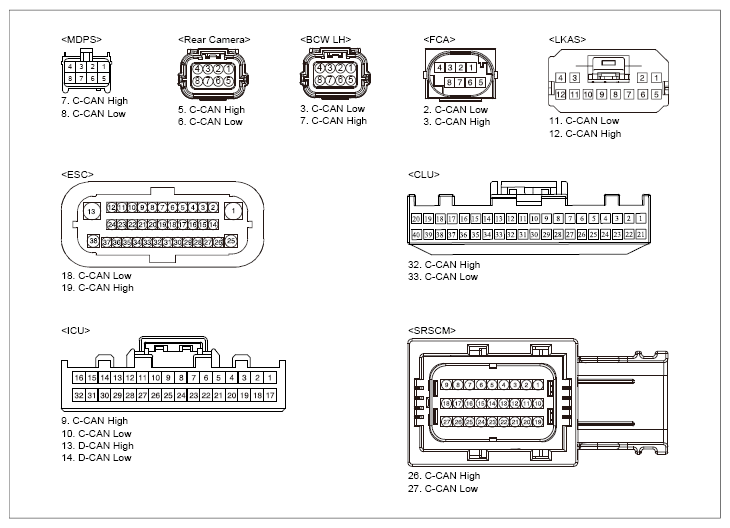

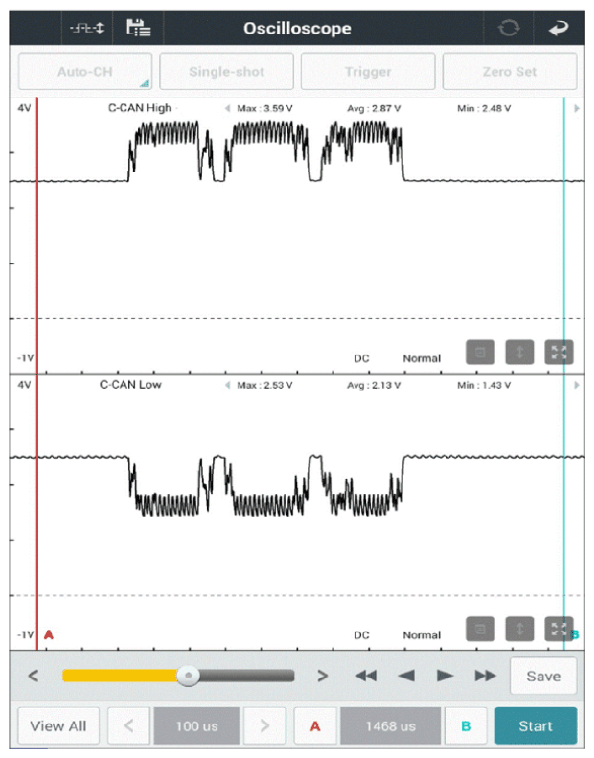

SCC (FCA) connector | 3 (C-CAN high) | Chassis ground | - | Fig.1 |
| SCC (FCA) connector | 2 (C-CAN low) | Chassis ground | - | ||
|
SCC (FCA) connector | 3 (C-CAN high) | Chassis ground | - | ∞ (infinite)Ω |
| SCC (FCA) connector | 2 (C-CAN low) | Chassis ground | - | ∞ (infinite)Ω | |
|
SCC (FCA) connector | 3 (C-CAN high) | HECU connector | 19 (C-CAN high) | below 1Ω |
| SCC (FCA) connector | 2 (C-CAN low) | HECU connector | 18 (C-CAN low) | below 1Ω | |
Good
- Fault is intermittent caused by poor contact in the sensor's and/or Control module's connector or was repaired and Control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
- Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
* In case of replacing SCC (FCA) module, perform following "System Inspection" procedure.
No Good
- Check for open/short in harness.
- Repair as necessary and then go to "VERIFICATION OF REPAIR " procedure.
