Repair Procedures: Removal

1. Remove the air cleaner assembly.

   (Refer to Engine Mechanical System - "AIR CLEANER ")

2. Remove the battery and battery tray.

   (Refer to Body Electrical System - "BATTERY ")

3. Remove the inhibitor switch.

   (Refer to Double Clutch Transmission Control System - "INHIBITOR SWITCH ")

4. Disconnect the connectors (A, B, C, D) in the illustration below.
   1. Inhibitor switch connector
   2. Input shaft speed sensor connector
   3. Gear actuator solenoid connector
   4. Clutch actuator connector

   Courtesy of KIA MOTORS AMERICA, INC.

5. Loosen the ground bolt (A).

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

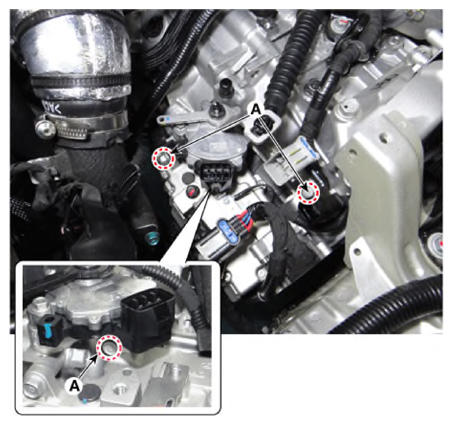

6. Loosen the clutch actuator mounting bolts (A).

   Tightening torque:

   19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

7. Remove the under cover.

   (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

8. Remove the wiring bracket mounting clips (A) and bolts (B).

   Tightening torque:

   19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb.ft)

   Courtesy of KIA MOTORS AMERICA, INC.

   Courtesy of KIA MOTORS AMERICA, INC.

9. Remove the vacuum pump.

   (Refer to Brake System - "VACUUM PUMP ")

10. Remove the fork cover (A).

    Tightening torque:

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

11. Install the special service tool (09430-A5100).
    1. Loosen the starter mounting bolt (A) and the transmission mounting bolt (B).

       Tightening torque:

       1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)
       2. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb.ft)

       Courtesy of KIA MOTORS AMERICA, INC.

    2. Fix the clutch fork by installing the special service tool (09430-A5100).

    Courtesy of KIA MOTORS AMERICA, INC.

    Information

    1. Assemble the adapter-A (B) to main body (A).

       Courtesy of KIA MOTORS AMERICA, INC.

    2. Assemble the space bar-1 (A) to adapter after checking direction of spacer bar.

       Courtesy of KIA MOTORS AMERICA, INC.

12. Remove the clutch actuator assembly (A) after loosening the bolts.

    Tightening torque:

    19.6 - 26.5 N.m (2.0 - 2.7 kgf.m, 14.5 - 19.5 lb.ft)

    Courtesy of KIA MOTORS AMERICA, INC.

13. Remove the clutch actuator motor (A) if it is needed.

Courtesy of KIA MOTORS AMERICA, INC.

Information

• Check the date of production to define if it is objective vehicle or not when the replacement of clutch actuator motor.
• Date of production: 15.8/17 ~
• The way to find the date of production

• The year of production: F: 2015, G: 2016, H: 2017, I: 2018, J: 2019...
• The month of production: 1: January, 2: February, 3: March, 4: April, 5: May, 6: June, 7: July, 8: August, 9: September, 10: October, 11: November, 12: December
• The day of production: 01: 1st, 02: 2nd, 03: 3rd~ 31: 31st

Courtesy of KIA MOTORS AMERICA, INC.
