Repair Procedures: Installation

  1. Install in the reverse order of removal.
    NOTE:

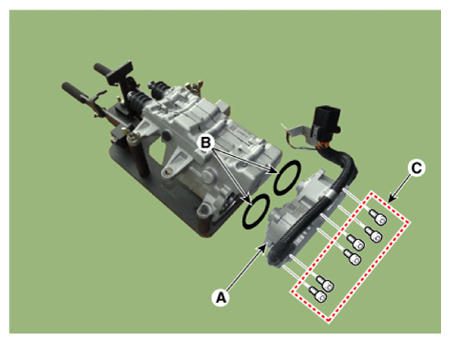

    • The existing O-rings (B) and seal bolts (C) must be replaced with a new one while installing the clutch actuator motor (A). (Do not reuse it)
      G13281035Courtesy of KIA MOTORS AMERICA, INC.
    • If clutch actuator needs replacement, measure the pull rod length of the old clutch actuator to determine if clutch wear compensation reset is needed.

      (Refer to Clutch Actuator Assembly - " ADJUSTMENT  ")

    • If needed, perform clutch actuator clutch wear compensation reset.

      (Refer to Clutch Actuator Assembly - " ADJUSTMENT  ")

    • Check the assembled state of the dowel pins (A) before installing the clutch actuator assembly.
    G13281036Courtesy of KIA MOTORS AMERICA, INC.

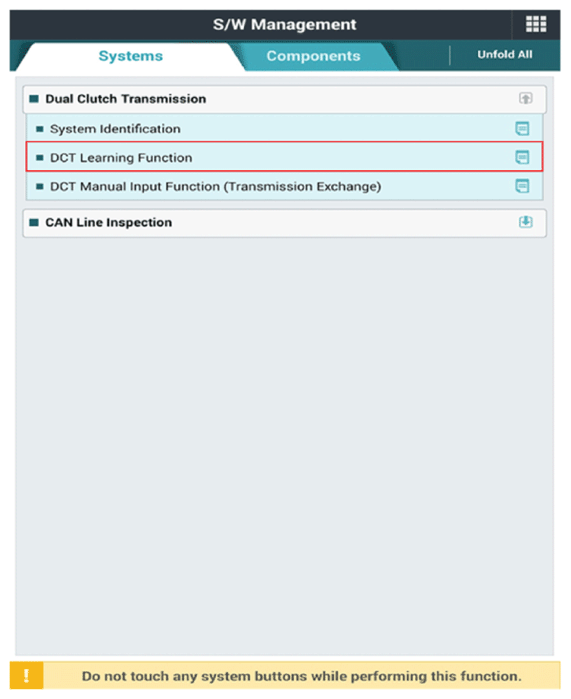

    • Perform the clutch touch point learning procedure using the KDS after replacing the clutch actuator assembly.
    G13281037Courtesy of KIA MOTORS AMERICA, INC.
