Components And Components Location: Components

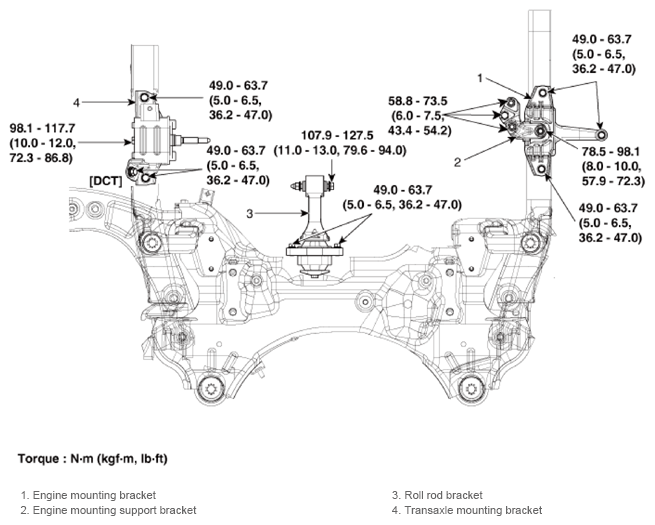

Fig 1: Engine Mounting Components Location With Torque Specification

G13280512

Courtesy of KIA MOTORS AMERICA, INC.
