Repair Procedures: Removal

NOTE:

Use fender covers to avoid damaging painted surfaces.
To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

Information

Mark all wiring and hoses to avoid misconnection.
For release the fuel system pressure before remove the engine assembly, start the engine without fuel pump relay. And then turn off the ignition switch after engine stops.

Disconnect the battery negative terminal.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")
Remove the air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Body Electrical System - "BATTERY ")
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
Loosen the drain plug and drain the coolant. Open the radiator cap to make rapid draining.
(Refer to Cooling System - "COOLANT ")
Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.
(Refer to Heating, Ventilation Air conditioning - "COMPRESSOR ")
Remove the intercooler inlet hose & pipe (A).
Tightening torque

Hose clamp bolt:

4.9 - 6.9 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.1 lb.ft, 43.4 - 60.8 lb.in)

(If equipped with a cap, tighten it until the cap is removed.)

Pipe mounting Bolt:

18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

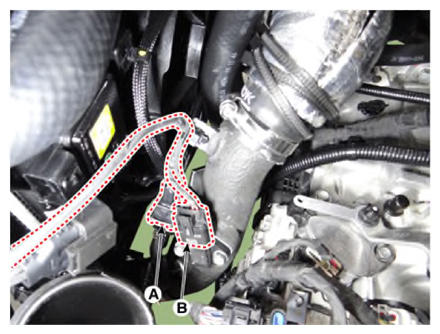

Disconnect the RCV solenoid valve connector (A) and booster pressure sensor (BPS) connector (B).

Courtesy of KIA MOTORS AMERICA, INC.

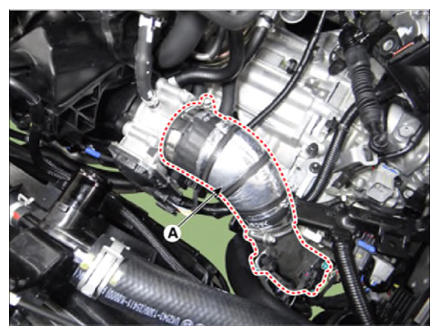

Disconnect the intercooler outlet hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

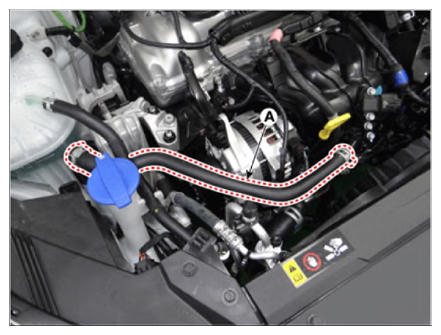

Disconnect the reservoir tank hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

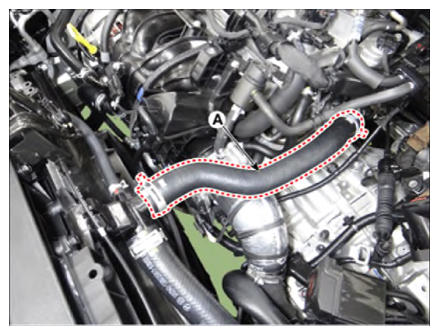

Disconnect the radiator upper hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

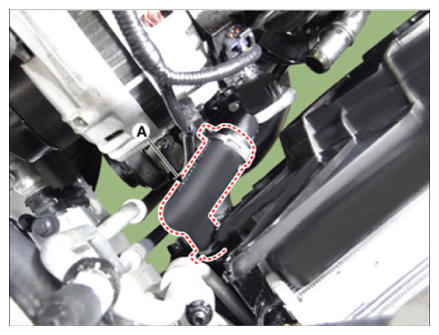

Disconnect the radiator lower hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

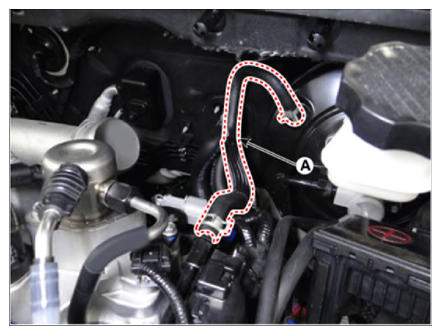

Disconnect the brake booster vacuum hose (A).

Courtesy of KIA MOTORS AMERICA, INC.

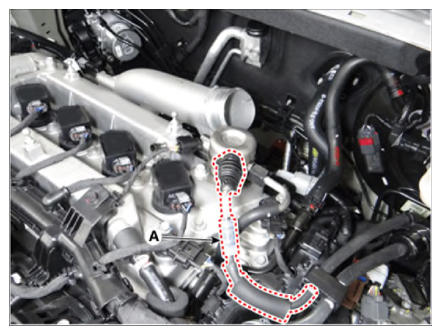

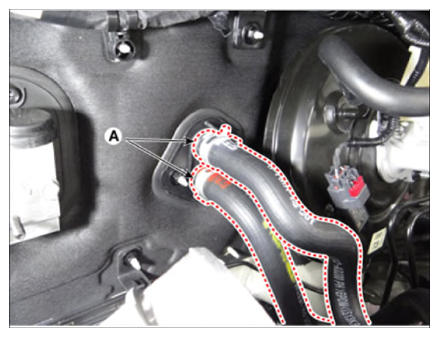

Disconnect the heater hose (A).

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the fuel hose (A) and the purge control solenoid valve (PCSV) hose (B).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Remove the engine wiring.

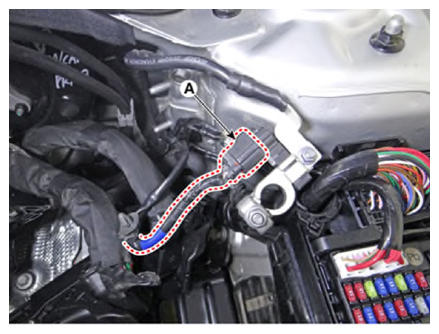

Disconnect the battery sensor connector (A).

G13280531

Courtesy of KIA MOTORS AMERICA, INC.

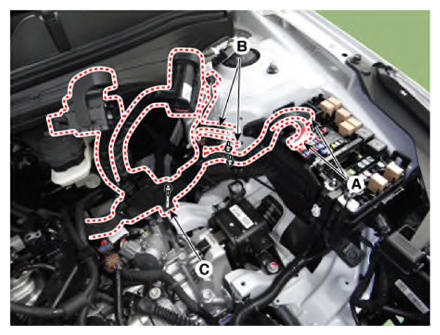

Disconnect the connector (A) from the fuse box.
Disconnect the ground cable (B).
Tightening torque:

10.8 - 13.7 N.m (1.1 - 1.4 kgf.m, 8.0 - 10.1 lb.ft)

Remove the main wiring protector (C).

Tightening torque:

6.9 - 9.8 N.m (0.7 - 1.0 kgf.m, 5.1 - 7.2 lb.ft)

G13280532

Courtesy of KIA MOTORS AMERICA, INC.

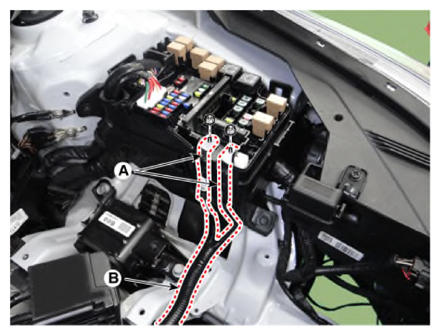

Disconnect the fuse box wiring cable (A).
Disconnect the battery wiring (B).

G13280533

Courtesy of KIA MOTORS AMERICA, INC.

Remove the front muffler.
(Refer to Intake and Exhaust System - "MUFFLER ")
Remove the roll rod bracket (A).
Tightening torque

Bolt (B):

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Bolts (C):

49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

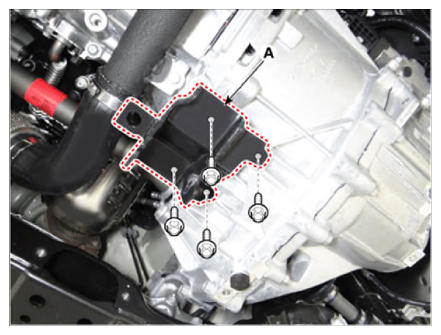

Remove the roll rod mounting support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Remove the sub frame.
(Refer to Suspension system - "SUB FRAME ")
Remove the front driveshaft from the front axle.
(Refer to Driveshaft and axle - "FRONT DRIVESHAFT ")
Support the engine and transaxle assembly with a lift table.
Remove the engine mounting support bracket (A).
Tightening torque

Nut (B):

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb.ft)

Bolt and Nuts (C):

58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the engine ground cable (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the front wheel guard [LH].
(Refer to Body - "FRONT WHEEL GUARD ")

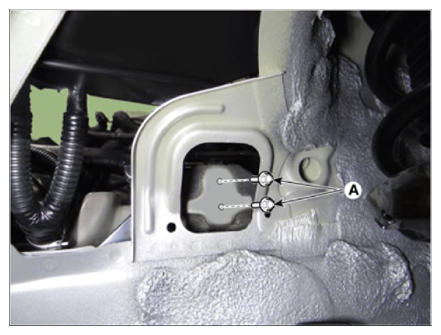

Remove the transaxle support bracket mounting bolt (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the transaxle ground cable (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine and transaxle assembly by lifting vehicle.

Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Before removing the engine and transaxle assembly, make sure hoses and wire connectors are disconnected.
- When removing the engine and transaxle assembly, be careful not to damage any surrounding parts or body components.
