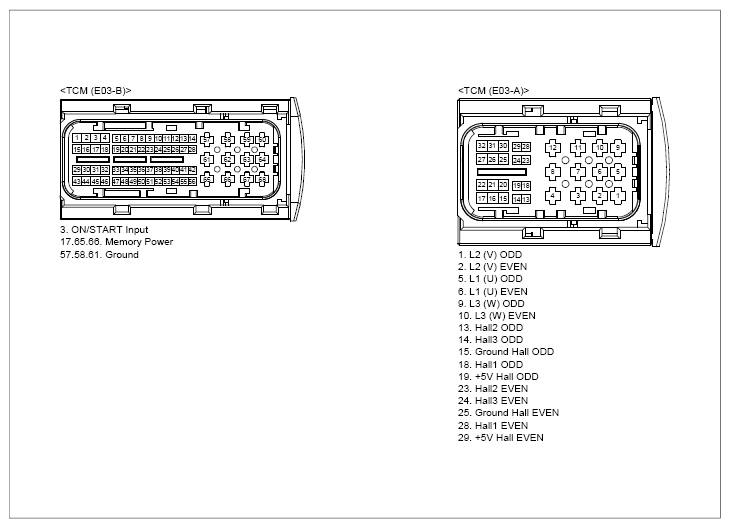

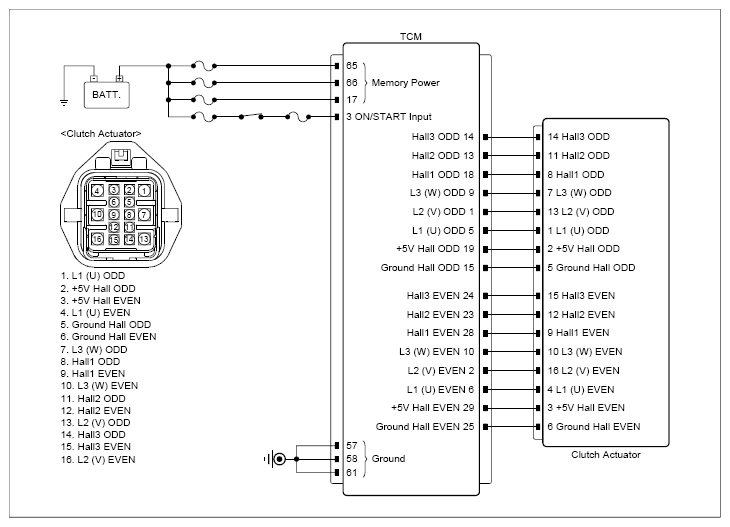

Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Clutch actuator connector | 1 (L1) | Chassis ground | - | Approx. 0.5V |
|
Clutch actuator connector | 1 (L1) | Clutch actuator connector | 2 (power) | ∞ (infinity)Ω |
|
Clutch actuator connector | 13 (L2) | Chassis ground | - | Approx. 0.5V |
|
Clutch actuator connector | 13 (L2) | Clutch actuator connector | 2 (power) | ∞ (infinity)Ω |
|
Clutch actuator connector | 7 (L3) | Chassis ground | - | Approx. 11V |
|
Clutch actuator connector | 7 (L3) | Clutch actuator connector | 2 (power) | ∞ (infinity)Ω |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- If problem still occurs, replace "Clutch Actuator" and then go to "Verification of Repair " procedure.
No Good
- Repair open or short in circuit between clutch actuator and TCM and then go to "Verification of Repair " procedure.
