Component Inspection: Notes

Inspection Condition	Inspection Procedure	Reference

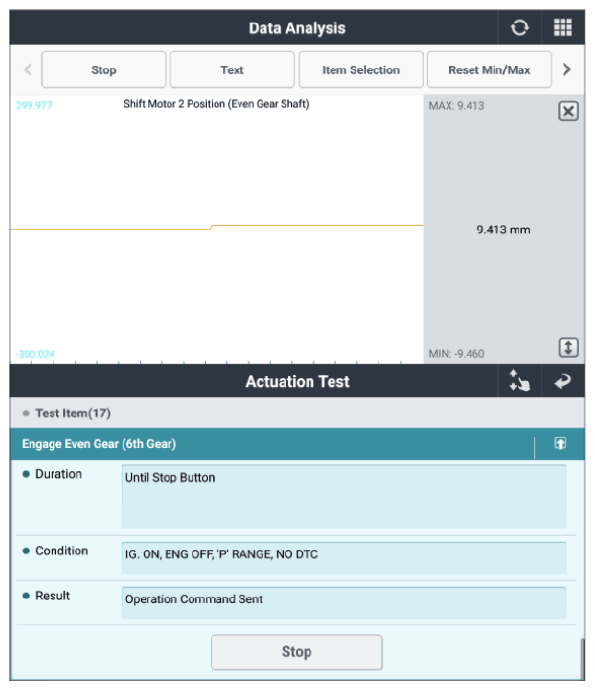

Ignition "ON". No DTC. Shift lever "P".	Ignition "OFF". Connect KDS to "Data Link Connector (DLC)". Ignition "ON". Perform "Engage Even Gear (6th Gear)" in "Actuation Test" with KDS. Monitor "Shift Motor 2 Position (Even Gear Shaft)" in "Current Data" with KDS.	Fig.1

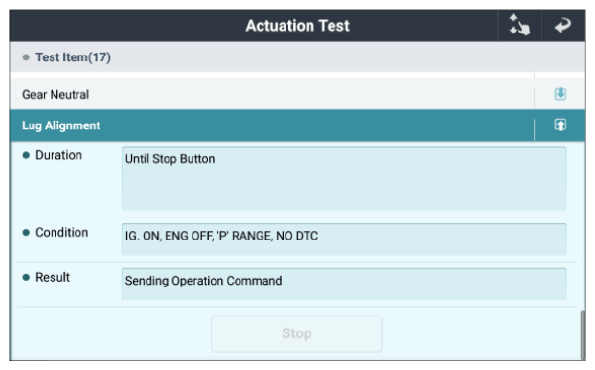

Ignition "ON". No DTC. Shift lever "P".	Ignition "OFF". Connect KDS to "Data Link Connector (DLC)". Ignition "ON". Perform "Lug Alignment" in "Actuation Test" with KDS.	Fig.2

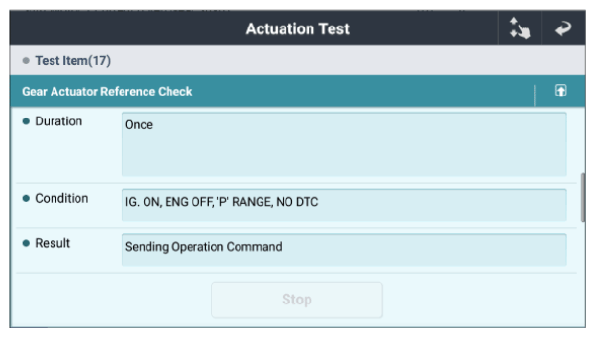

Ignition "ON". No DTC. Shift lever "P".	Ignition "OFF". Connect KDS to "Data Link Connector (DLC)". Ignition "ON". Perform "Gear Actuator Reference Check" in "Actuation Test" with KDS.	Fig.3

G13290356

Courtesy of KIA MOTORS AMERICA, INC.

G13290357

Courtesy of KIA MOTORS AMERICA, INC.

G13290358

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
Repair or replace as necessary and then go to "Verification of Repair " procedure.

No Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, repair or replace gear select assembly and then go to "Verification of Repair " procedure. (Perform "DCT Learning" in "Vehicle S/W Management" with KDS.)
Replace "DCT" and then go to "Verification of Repair " procedure. (Perform "DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.)
