Vehicle S/W Management
| Inspection Condition |
Inspection Procedure |
Reference |
- Engine "OFF".
- Ignition "ON".
- Gear lever position "P"
- Brake status "ON".
- No DTC.
|
- Ignition "OFF".
- Connect KDS to Data Link Connector (DLC).
- Select the "Vehicle S/W Management" about related DTC with KDS.
- Perform

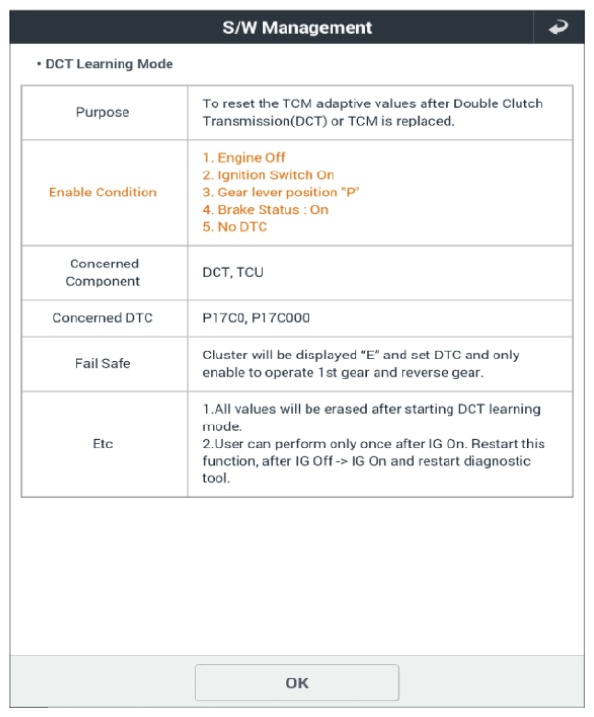

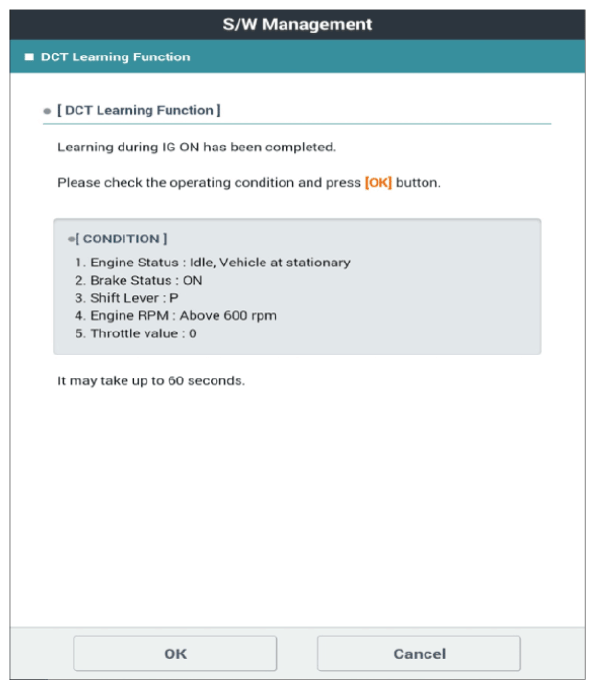

"DCT Learning function" and go to "Verification of Repair " procedure.
|

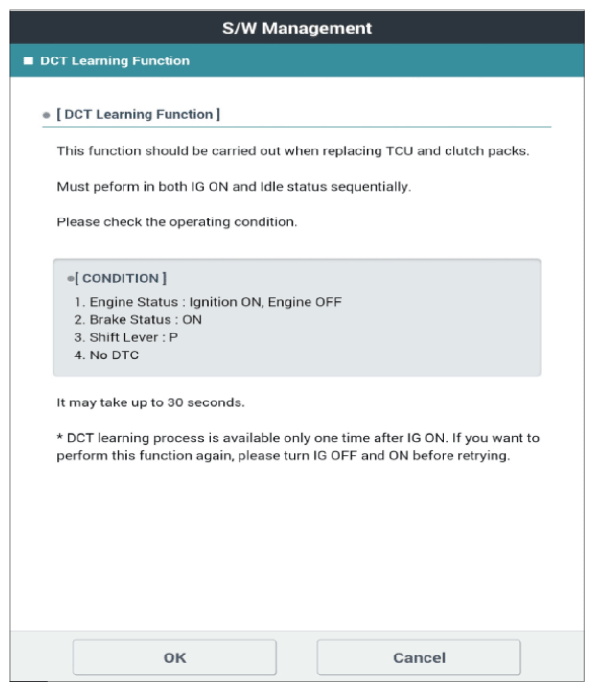

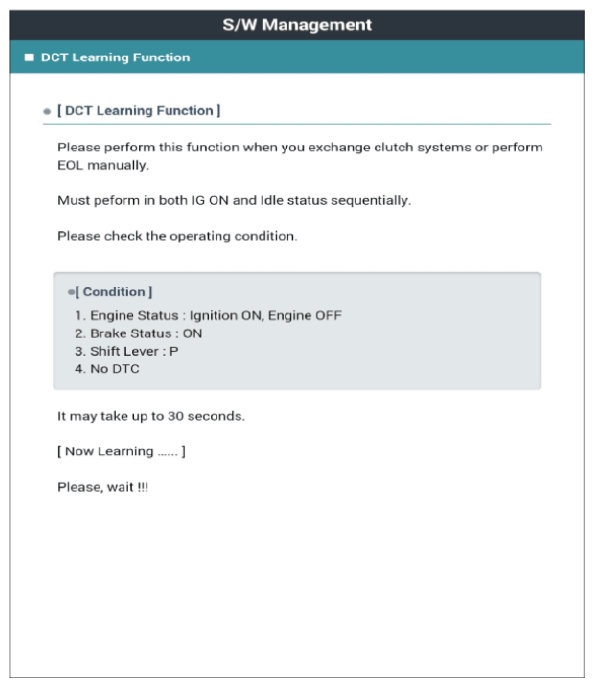

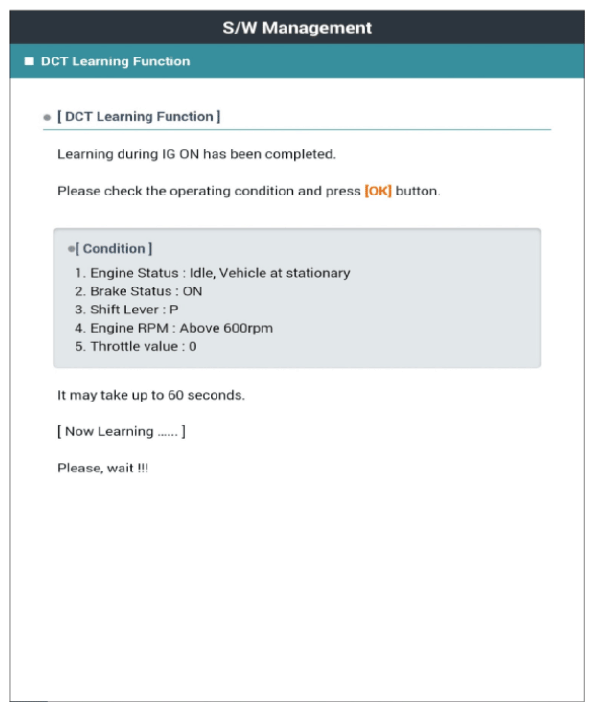

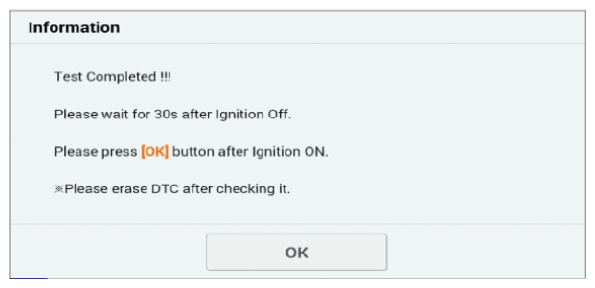

Fig.1 to 6 |
CAUTION:
In case of replacing TCM or clutch pack perform following procedures.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |
- Engine "OFF".
- Ignition "ON".
- Gear lever position "P".
|
- Ignition "OFF".
- Connect KDS to "Data Link Connector (DLC)".
- Ignition "ON"
- Select the "Vehicle S/W Management" about related DTC with KDS.
- Perform

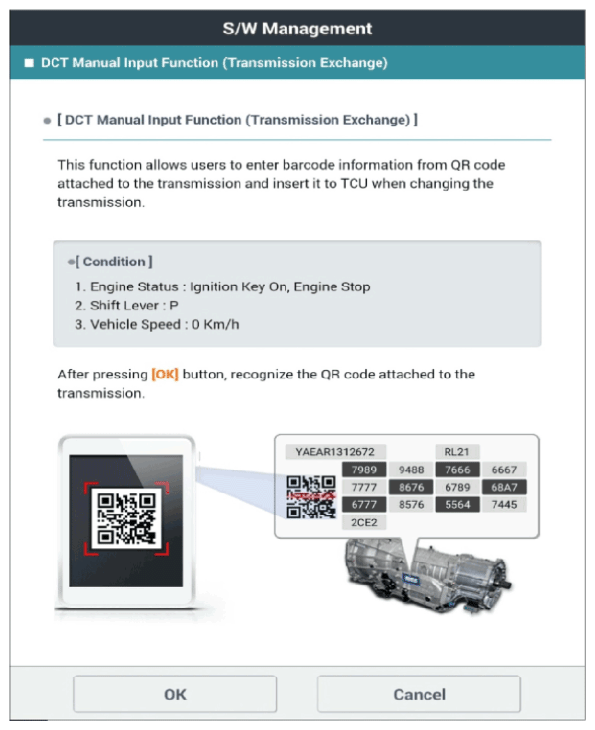

"DCT Manual Input Function (Transmission Exchange)" in "Vehicle S/W Management" with KDS.
|

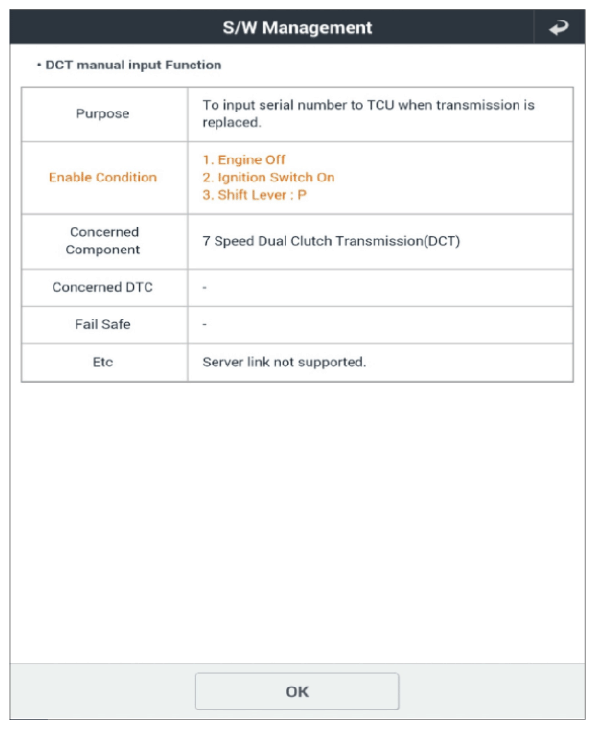

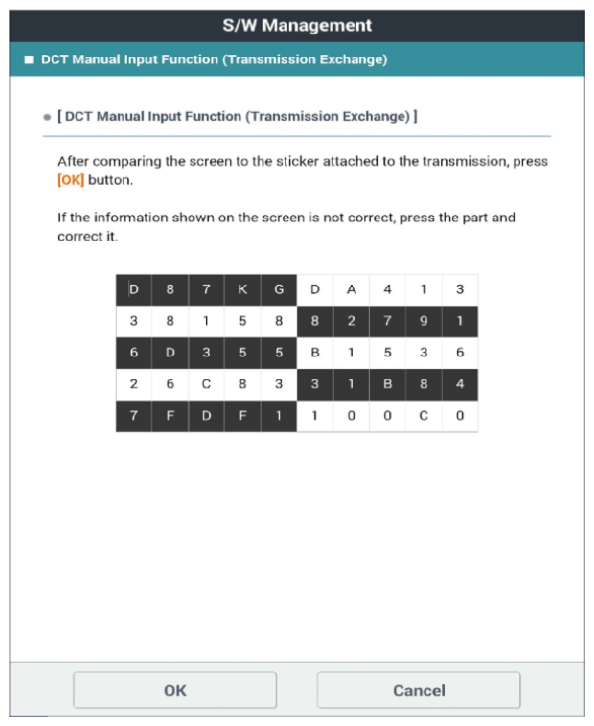

Fig.1 to 4 |
CAUTION:
In case of replacing DTC perform following procedures.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
| Inspection Condition |
Inspection Procedure |
Reference |
- Engine "OFF".
- Ignition "ON".
- Gear lever position "P".
|
- Ignition "OFF".
- Connect KDS to "Data Link Connector (DLC)".
- Select the "Vehicle S/W Management" about related DTC with KDS.
- Perform

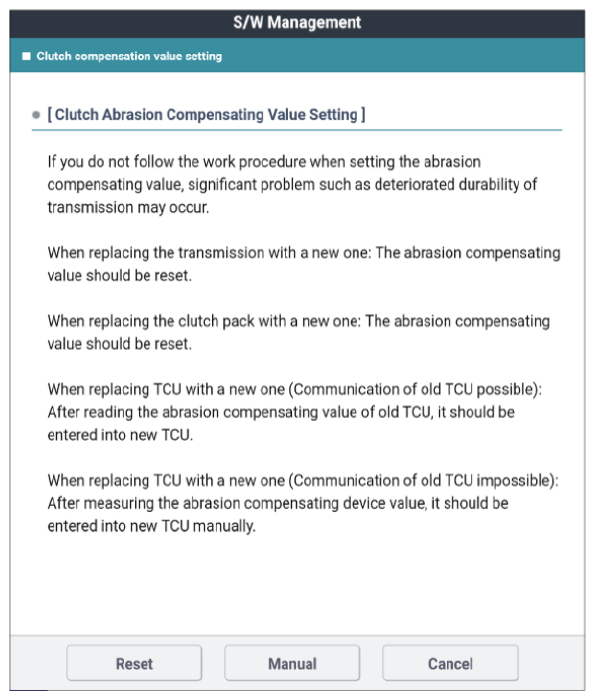

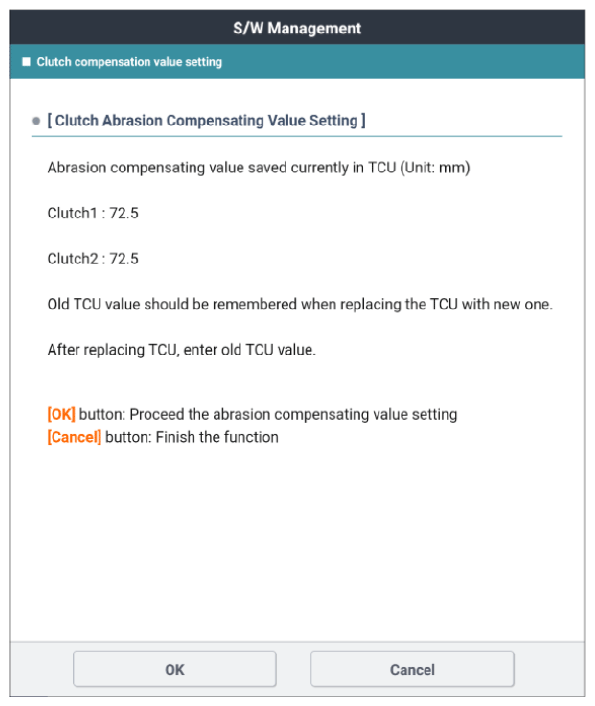

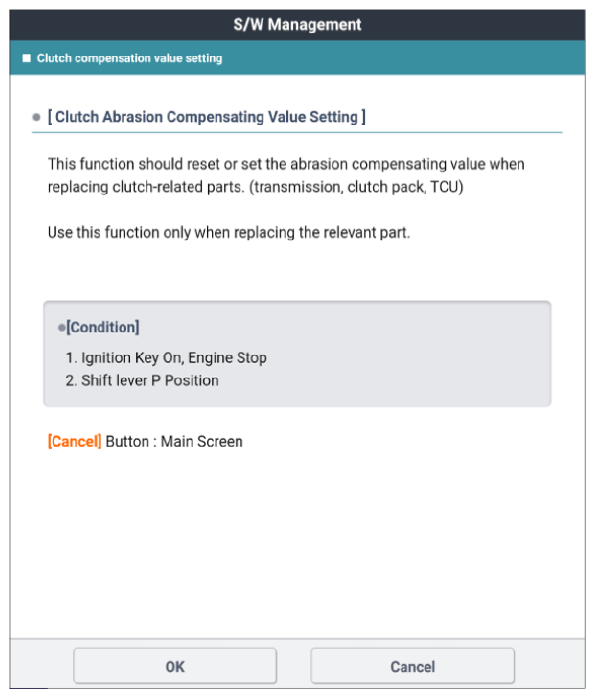

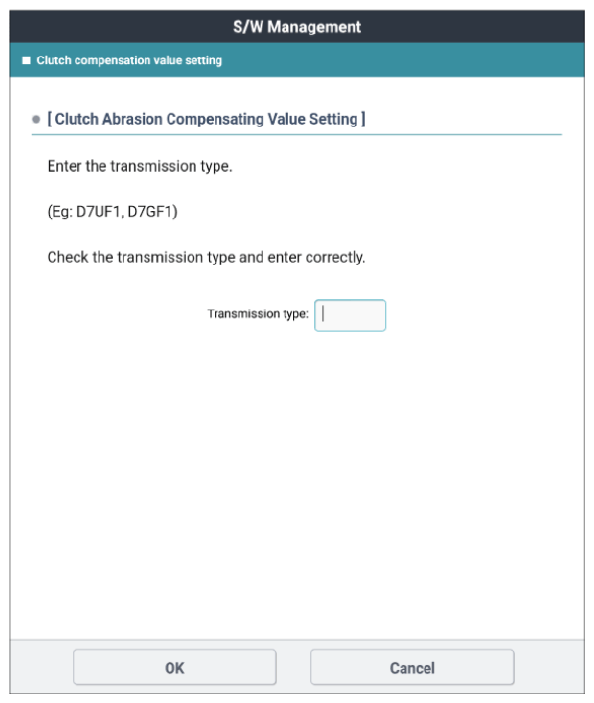

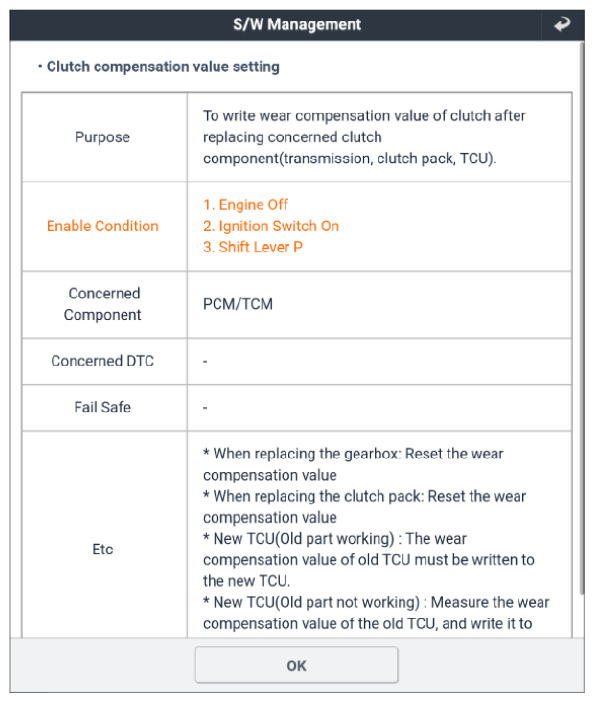

"Clutch Compensation Value Setting" and go to "Verification of Repair " procedure.
|

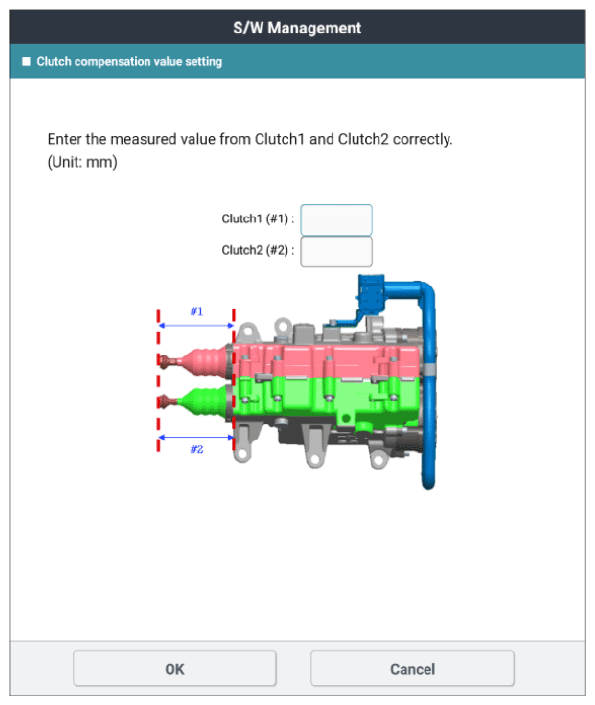

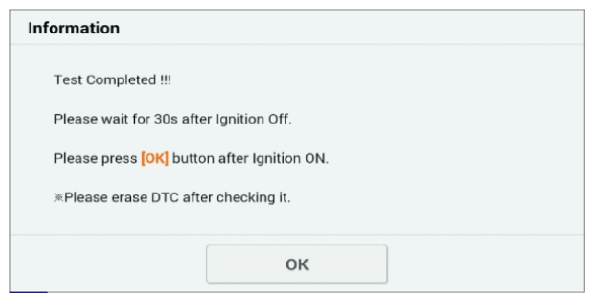

Fig.1 to 8 |
CAUTION:
In case of replacing TCM/clutch pack/transmission perform following procedures.
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
 Courtesy of KIA MOTORS AMERICA, INC.
|
