Circuit Inspection

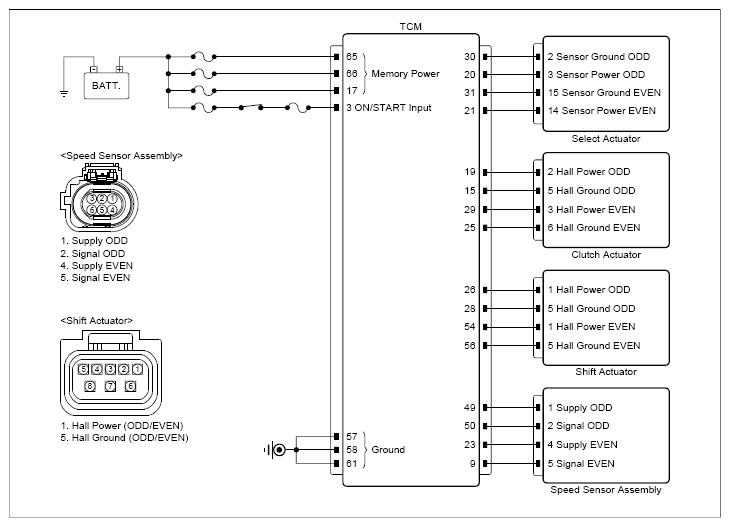

G13289713

Courtesy of KIA MOTORS AMERICA, INC.

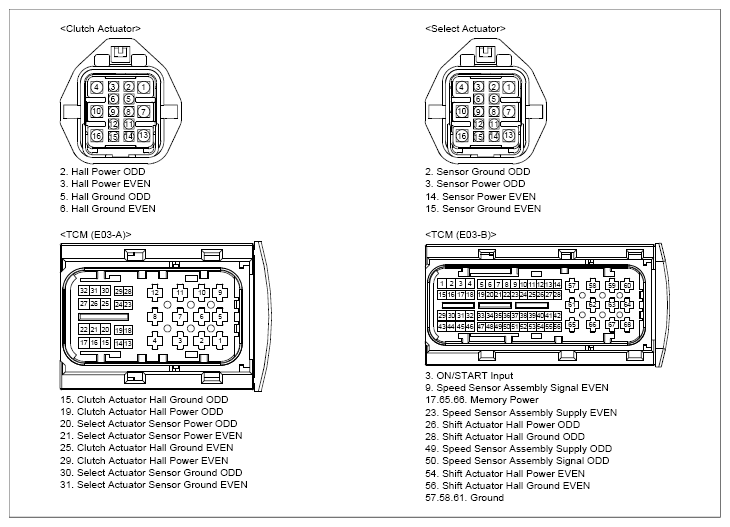

G13289714

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Gate select actuator connector	14 (power)	Chassis ground	-	Approx. 8.7V
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Input speed sensor connector	4 (power)	Chassis ground	-	Approx. 8.7V
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Clutch actuator connector	3 (power)	Chassis ground	-	Approx. 8.7V
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	Shift actuator connector	1 (power)	Chassis ground	-	Approx. 8.7V

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace TCM and then go to "Verification of Repair " procedure.

No Good

Repair open or short in circuit between sensor power and TCM and then go to "Verification of Repair " procedure.
