Steering Angle Sensor (SAS) Calibration

NOTE:
  • Check that the battery is fully charged before "Steering Angle Sensor (SAS) Calibration".
  • Be careful not to disconnect any cables connected to the vehicle or scan tool during "Steering Angle Sensor (SAS) Calibration".
  • After completing the "Steering Angle Sensor (SAS) Calibration", switch off the ignition and wait for several seconds. Then, start the engine to confirm normal operation of the vehicle.
  1. Connect self-diagnosis connector (16pins) located under the driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.
  2. Select the "vehicle model" and "Motor Driven Power Steering" on KDS vehicle selection screen.
  3. Select the "Steering Angle Sensor (SAS) Calibration" on KDS screen, then select OK.
  4. Proceed with the test according to the screen instructions.
G13281538Courtesy of KIA MOTORS AMERICA, INC.
G13281539Courtesy of KIA MOTORS AMERICA, INC.
G13281540Courtesy of KIA MOTORS AMERICA, INC.

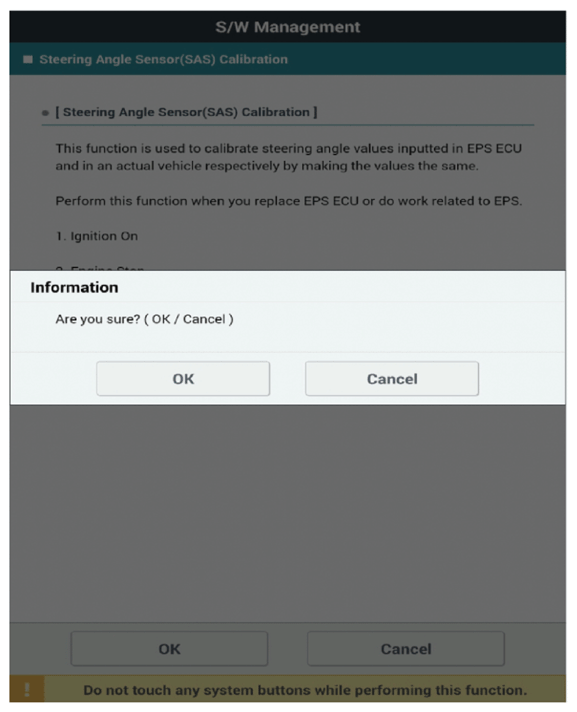

G13281541Courtesy of KIA MOTORS AMERICA, INC.
G13281542Courtesy of KIA MOTORS AMERICA, INC.
