Repair Procedures: Removal

Information

If the passenger airbag module has been deployed, replace the damaged crash pad.

1. Remove the main crash pad assembly.

   (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

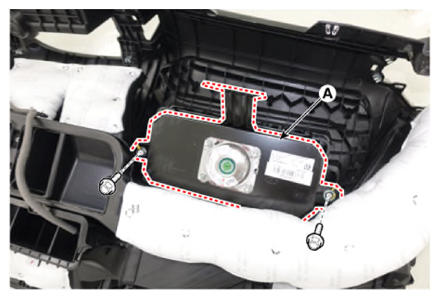

2. Remove the passenger airbag module (A) after loosening the bolts.

   Tightening torque:

   3.9 - 5.8 N.m (0.4 - 0.6 kgf.m, 2.8 - 4.3 lb.ft, 34.7 - 52.0 lb.in)

Courtesy of KIA MOTORS AMERICA, INC.
