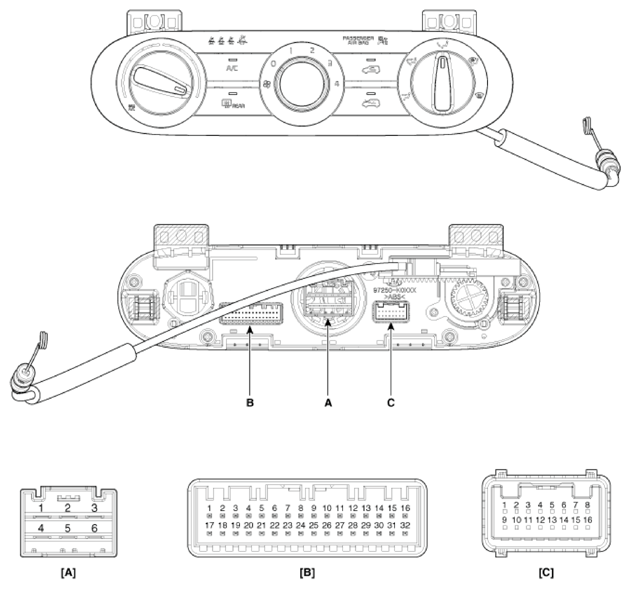

Components And Components Location: Components

Courtesy of KIA MOTORS AMERICA, INC.

Connector	Pin NO	Function	Connector	Pin NO	Function
A	1	Low	A	21	Middle Low
	2	Common		22	Middle High
	3	Ground		23	High

Connector	Pin NO	Function	Connector	Pin NO	Function
B	1	Battery (+)	B	17	Rear defog switch
	2	ISG B+		18	Max blower on signal
	3	ILL+ (TAIL)		19	Blower on signal to common
	4	Sensor ground REF (+5V)		20	ILL- (RHEO)
	5	Mode control actuator (Feedback)		21	IGN2
	6	-		22	IGN1
	7	Intake actuator (Feedback)		23	P_CAN High
	8	EVAP sensor (+)		24	P_CAN Low
	9	AMB sensor (+)		25	-
	10	Mode control actuator (Vent)		26	-
	11	Mode control actuator (Def)		27	-
	12	Heated seat IND [Front]		28	-
	13	Heated seat SW [Front]		29	ECV(+)
	14	Intake actuator (Fresh)		30	ECV (-)
	15	Intake actuator (Recirculation)		31	Sensor ground
	16	HTD (Rear defog indicator)		32	Ground

Connector	Pin NO	Function	Connector	Pin NO	Function
C	1	SBR Passenger	C	9	-
	2	SBR 2 Row Left		10	PTC Relay 1
	3	SBR 2 Row Middle		11	PTC Relay 2
	4	SBR 2 Row Left		12	-
	5	PAB IGN1		13	-
	6	PAB Cut off Signal		14	-
	7	PAB on Signal		15	-
	8	-		16	Ground
