Self Diagnosis

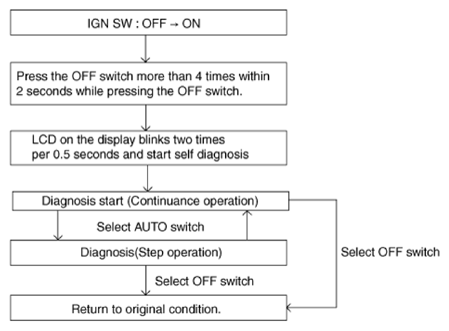

  1. Self-diagnosis process.
    G13283087Courtesy of KIA MOTORS AMERICA, INC.
    NOTE:
    • When operating the self-diagnostics, the below fault (self-diagnostics code) will blink at 0.5 seconds interval on the temperature display settings (driver's side only) and the remaining symbols are OFF.
  2. Fault code display
    1. Continuance operation: DTC code.
      G13283088Courtesy of KIA MOTORS AMERICA, INC.
    2. Continuance operation: DTC code.
      G13283089Courtesy of KIA MOTORS AMERICA, INC.
    3. STEP operation.
      1. Normal or one fault code is same as a continuance operation.
      2. DTC code.
        G13283090Courtesy of KIA MOTORS AMERICA, INC.
