Repair Procedures: Replacement

  1. Remove the battery (-) terminal.

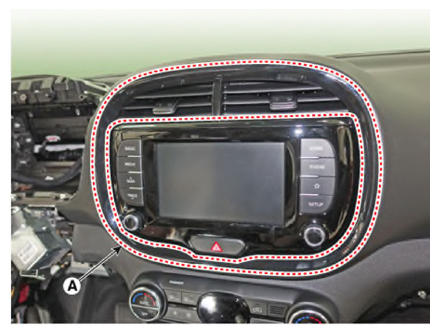

  2. Using a screwdriver or remover, remove the center fascia panel (A).
    G13283091Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the audio and AVN head unit.

    (Refer to Body Electrical System - "AUDIO/AVN HEAD UNIT ")

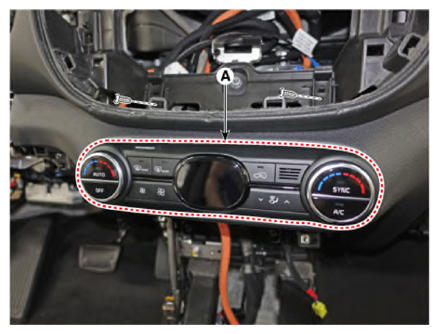

  4. After loosening the mounting screws, remove the A/C & heater controller unit (A).
    G13283092Courtesy of KIA MOTORS AMERICA, INC.

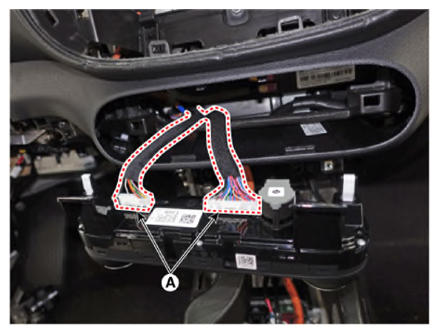

  5. Disconnect the A/C & heater controller connectors (A).
    G13283093Courtesy of KIA MOTORS AMERICA, INC.
  6. To install, reverse the removal procedure.
    NOTE:
    • Reassemble the connector correctly.
    • Replace any damaged clips.
