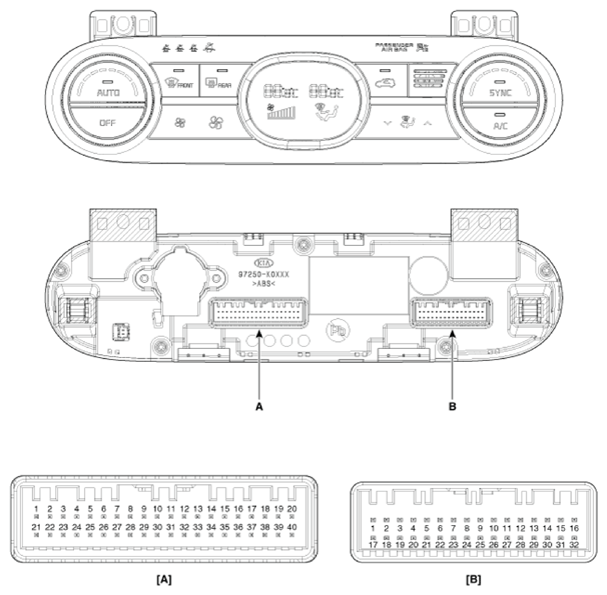

Components And Components Location: Components

Courtesy of KIA MOTORS AMERICA, INC.

Connector	Pin NO	Function	Connector	Pin NO	Function
A	1	Battery (+)	A	21	IGN2
	2	ISG B+		22	IGN1
	3	ILL+ (TAIL)		23	Blower motor (+)
	4	Sensor ground REF (+5V)		24	Photo sensor (-) [LH]
	5	Mode control actuator (Feedback)		25	Photo sensor (-) [RH]
	6	Temperature actuator feedback [Driver]		26	-
	7	Intake actuator (Feedback)		27	-
	8	EVAP sensor (+)		28	PTC Relay 1
	9	AMB sensor (+)		29	PTC Relay 2
	10	Mode control actuator (Vent)		30	-
	11	Mode control actuator (Def)		31	-
	12	Temperature actuator (Cool) [Driver]		32	-
	13	Temperature actuator (Warm) [Driver]		33	P_CAN High
	14	Intake actuator (Fresh)		34	P_CAN Low
	15	Intake actuator (Recirculation)		35	FET (DRAIN F/B)
	16	HTD (Rear defog indicator)		36	FET (GATE)
	17	Rear defog switch		37	ECV(+)
	18	-		38	ECV (-)
	19	-		39	Sensor ground
	20	ILL- (RHEO)		40	Ground

Connector	Pin NO	Function	Connector	Pin NO	Function
B	1	Temperature actuator feedback [Passenger]	B	17	PAB IGN1
	2	Temperature actuator (Cool) [Passenger]		18	PAB Cut off Signal
	3	Temperature actuator (Warm) [Passenger]		19	PAB on Signal
	4	-		20	-
	5	Heated seat IND [Front]		21	-
	6	Heated seat SW [Front]		22	-
	7	-		23	-
	8	-		24	-
	9	-		25	-
	10	-		26	SBR Passenger
	11	-		27	SBR 2 Row Left
	12	-		28	SBR 2 Row Middle
	13	-		29	SBR 2 Row Right
	14	-		30	-
	15	-		31	-
	16	-		32	Ground
