Flange With Guide Pin

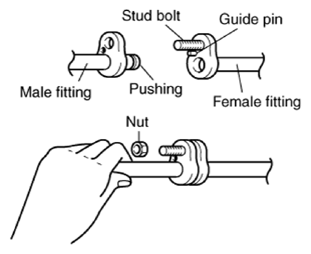

Check the new O-ring for damage (use only the specified) and lubricate by using compressor oil. Tighten the nut to specified torque.

G13282939Courtesy of KIA MOTORS AMERICA, INC.
