Home >> Kia >> 2020 >> Soul GT Line Turbo >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning System >> Ambient Temperature Sensor >> Repair Procedures >> Replacement

Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

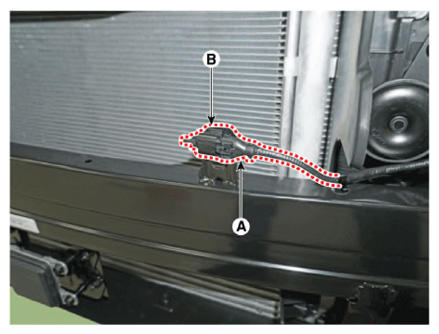

  3. Disconnect the connector (A) and then remove the ambient temperature sensor (B).
    G13283001Courtesy of KIA MOTORS AMERICA, INC.
  4. To install, reverse the removal procedure.
