Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Recover the refrigerant with a recovery/charging station.

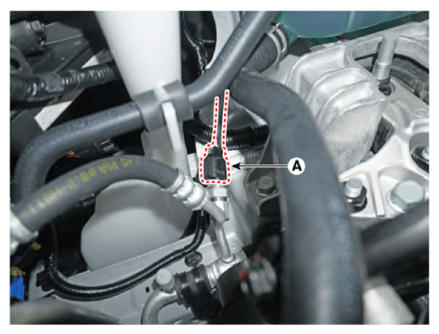

  3. Disconnect the A/C pressure transducer connector (A).
    G13282987Courtesy of KIA MOTORS AMERICA, INC.

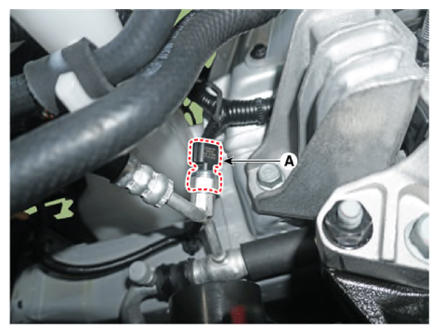

  4. Remove the A/C pressure transducer (A).

    Tightening torque:

    9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

    G13282988Courtesy of KIA MOTORS AMERICA, INC.
    CAUTION: Be careful not to bend the liquid & suction pipe.
  5. To install, reverse the removal procedure.
    NOTE: When installing, replace it with a new O-ring.
