Rear Brake Disc Thickness Check
- Check the brake pads for wear and fade.
- Check the brake disc for damage and cracks.

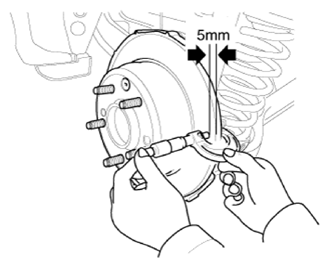

- Remove all rust and contamination from the surface, and measure the disc thickness at 8 points, at least, at the same distance apart (5 mm) from the brake disc outer circle.
Brake disc thickness
Standard:
- 14, 15 inch: 10 mm (0.3937 in.)
Service limit:
- 14, 15 inch: 8.4 mm (0.3307 in.)
Deviation: less than 0.005 mm (0.0002 in)
- If wear exceeds the limit, replace left and right discs and pad assemblies of the vehicle.
