Removal And Installation
WARNING: This page is about a different variant/trim than selected.
- Drain the coolant.
(Refer to Cooling System - "COOLANT ")
- Remove the drive belt.
(Refer to Drive Belt System - "DRIVE BELT ")

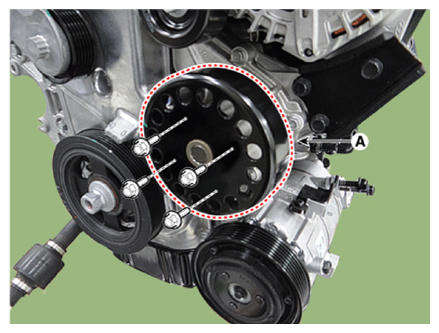

- Remove the water pump pulley (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

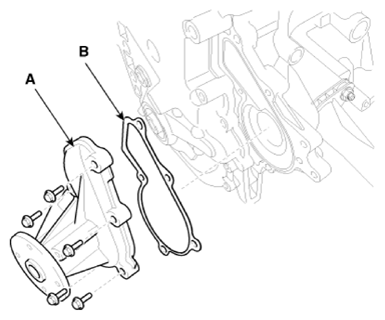

- Remove the water pump assembly (A) with the gasket (B).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)
- Install in the reverse order of removal.NOTE: Always use a new water pump gasket.
- Fill the engine coolant.
(Refer to Cooling System - "COOLANT ")
- Start the engine and check for leaks.
- Recheck the coolant level.
