Removal And Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the battery negative terminal.
  2. Remove the air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  3. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  4. Drain the coolant.

    (Refer to Cooling System - "COOLANT ")

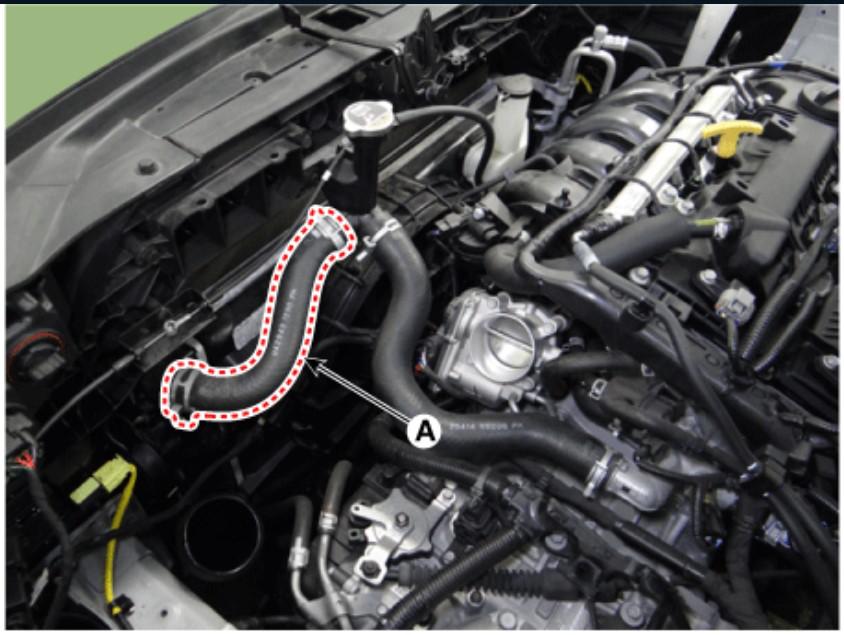

  5. Disconnect the radiator upper hose (A).
    G13283298Courtesy of KIA MOTORS AMERICA, INC.

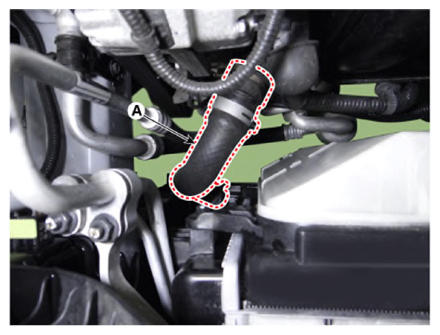

  6. Disconnect the radiator lower hose (A).
    G13283299Courtesy of KIA MOTORS AMERICA, INC.
  7. Remove the cooling fan assembly.

    (Refer to Cooling System - "COOLING FAN ")

  8. Remover the front bumper assembly.

    (Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")

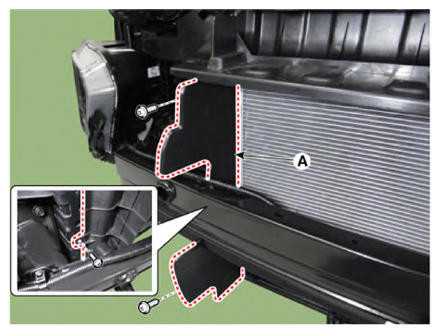

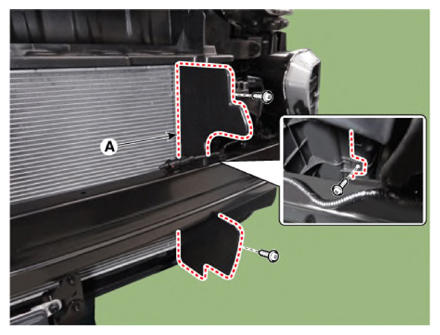

  9. Remove the air guide (A).

    [RH]

    G13283300Courtesy of KIA MOTORS AMERICA, INC.

    [LH]

    G13283301Courtesy of KIA MOTORS AMERICA, INC.

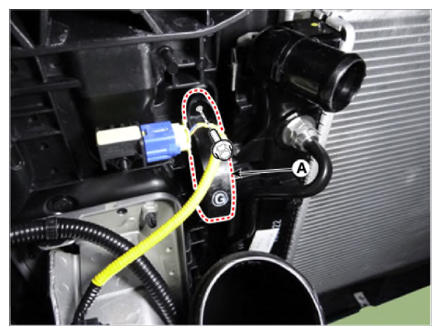

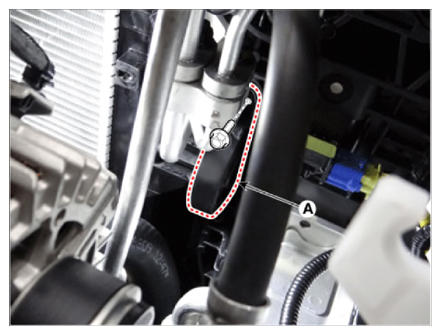

  10. Remove the radiator upper mounting bracket (A).

    Tightening torque:

    7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb.ft)

    [RH]

    G13283302Courtesy of KIA MOTORS AMERICA, INC.

    [LH]

    G13283303Courtesy of KIA MOTORS AMERICA, INC.
  11. Separate the condenser and then remove the radiator (A).
    G13283304Courtesy of KIA MOTORS AMERICA, INC.
  12. Install in the reverse order of removal.
  13. Fill with engine coolant.

    (Refer to Cooling System - "COOLANT ")

  14. Start engine and check for leaks.
  15. Recheck engine coolant level.
