Removal And Installation: Thermostat

WARNING: This page is about a different variant/trim than selected.
  1. Drain engine coolant so its level is below thermostat.

    (Refer to Cooling System - "COOLANT ")

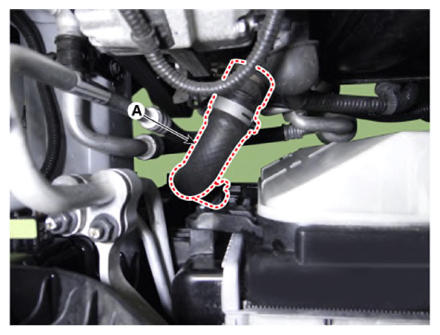

  2. Disconnect the radiator lower hose (A)
    G13283319Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the electric thermostat (ECT) connector.

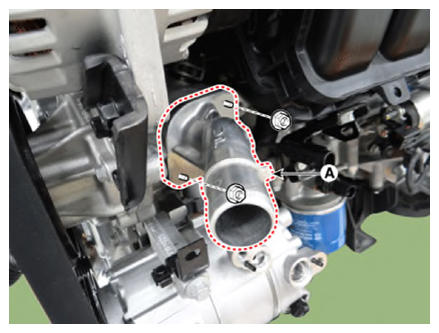

  4. Remove the electric thermostat (ECT) (A).

    Tightening torque:

    18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb.ft)

    G13283320Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
    NOTE:
    • Install the thermostat with the jiggle valve upward.
    • When assembling the thermostat, place the thermostat on the housing with a protrusion of thermostat matching with a groove of the housing and install the inlet fitting. Be careful the thermostat doesn't get out of the groove on the housing.
    • Clean surface on the rubber packing contact surface.
  6. Fill the engine coolant.
  7. Start the engine and check for leaks.
  8. Recheck the coolant level.
