Refilling And Bleeding

WARNING: This page is about a different variant/trim than selected.
CAUTION: Never remove the radiator cap when the engine is hot. Serious scalding could be caused by hot fluid under high pressure escaping from the radiator.
NOTE: When pouring engine coolant, be sure to shut the relay box lid and not to let coolant spill on the electrical parts or the paint. If any coolant spills, rinse it off immediately.
  1. Make sure the engine and radiator are cool to the touch.

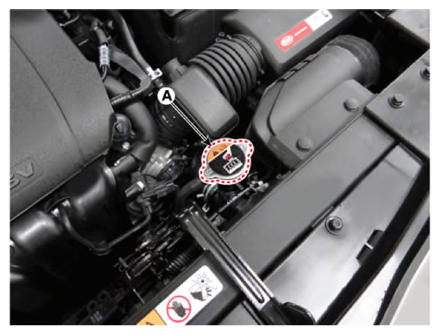

  2. Remove radiator cap (A).
    G13283275Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the engine room under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

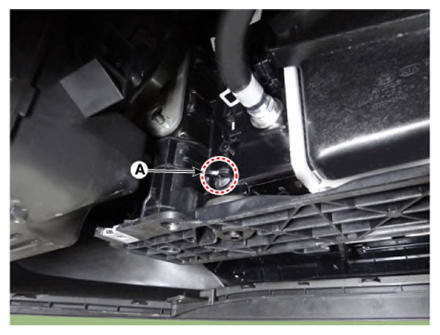

  4. Loosen the drain plug (A) and drain the coolant.
    G13283276Courtesy of KIA MOTORS AMERICA, INC.
  5. Tighten the radiator drain plug securely.
  6. After draining engine coolant in the reservoir tank, clean the tank.
  7. Fill fluid mixture with coolant and water (55-60%) (except for North America, Europe and China: 45-50%) slowly through the radiator cap. Push the upper/lower hoses of the radiator so as bleed air easily.
    NOTE:
    • Use only genuine antifreeze/coolant.
    • For best corrosion protection, the coolant concentration must be maintained year-round at 55% (except for North America, Europe and China: 45%) minimum.

      Coolant concentrations less than 55% (except for North America, Europe and China: 45%) may not provide sufficient protection against corrosion or freezing.

    • Coolant concentrations greater then 60% will impair cooling efficiency and are not recommended.
    CAUTION:
    • Do not mix different brands of antifreeze/coolants.
    • Do not use additional rust inhibitors or antirust products; they may not be compatible with the coolant.
  8. Perform the engine coolant filling mode on KDS to bleed air out of the cooling system.
    NOTE: As an electric thermostat (opening temperature 100°C(212°F)) is applied in the engine, fill up the coolant and use the KDS to enter the coolant filling mode and let out the air.

    [Engine Coolant Filling Mode]

    Information

    Guide Text on KDS: In an engine equipped with an electric thermostat (ECT), the current is applied to the electric thermostat while filling the coolant to help let out the air sufficiently.

    1. Turn the ignition switch OFF.
    2. Connect the KDS to Data Link Connector (DLC).
    3. Turn the ignition switch ON.
    4. Select "Vehicle, Model Year, Engine, System".
    5. Select "Vehicle S/W Management".

    * Conditions for Entering the Filling Mode

    1. The shift lever is at the P position and the parking brake is applied.
    2. The engine is idle.
    3. The coolant temperature is 75°C(167°F) or above.
    4. The vehicle speed is 0 km/h.
    5. The heater is turned off.
    6. Perform the work indoors to help raise the coolant temperature.
    7. Perform the "ENGINE COOLANT FILLING MODE
      G13283277Courtesy of KIA MOTORS AMERICA, INC.
    8. After confirming that the condition of the vehicle is satisfied with the inspection condition, and then press the "OK" button.
      G13283278Courtesy of KIA MOTORS AMERICA, INC.
    9. Check the engine coolant filling mode entry conditions and then press the "Read" to check the current coolant temperature.
      G13283279Courtesy of KIA MOTORS AMERICA, INC.

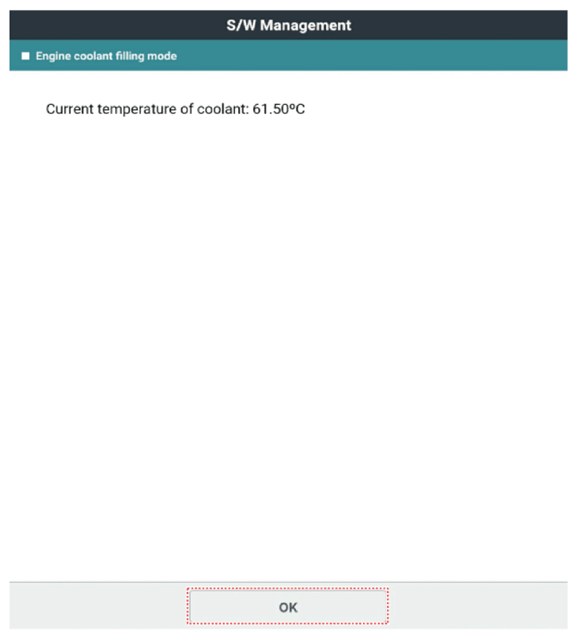

    10. Check the current coolant temperature and then press the "OK".
      G13283280Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: The current temperature of coolant is above 75°C (167°F), engine coolant filling mode can be performed.

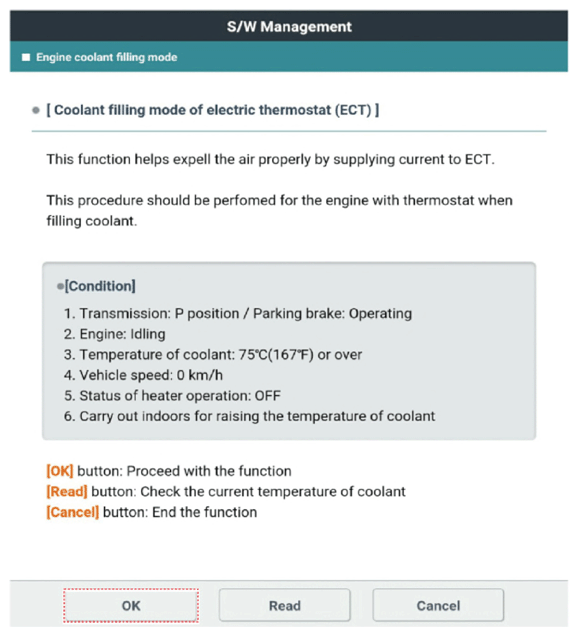

    11. If the coolant temperature is above 75°C (167°F), press the "OK" to performing engine coolant fill mode.
      G13283281Courtesy of KIA MOTORS AMERICA, INC.
    12. The engine coolant filling mode is maintained until the temperature of coolant becomes 75°C (194°F).
      G13283282Courtesy of KIA MOTORS AMERICA, INC.

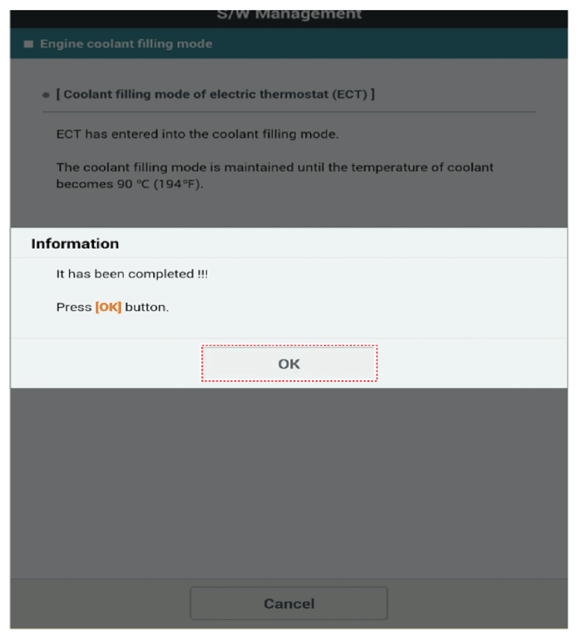

    13. When the engine coolant filling mode completed, press the "OK".
      G13283283Courtesy of KIA MOTORS AMERICA, INC.

    * Conditions for Deactivating the Filling Mode

    1. The coolant temperature is 90°C (194°F) or above.
    2. The filling mode stop option is selected in the diagnostic device.
    3. The conditions for entering the filling mode are not satisfied.
    4. A filling mode abort condition occurs such as an ECT heater failure or a WTS failure.
      CAUTION: Don't accelerate the engine.
  9. Install the radiator cap and fill the reservoir tank to the "MAX"+0.4L (or "FULL"+0.4L) line with coolant.
  10. Stop the engine and wait coolant gets cool.
  11. Repeat 8 to 10 until the coolant level doesn't fall any more, bleed air out of the cooling system.
    NOTE: It takes time to bleed out all the air in the cooling system. Refill coolant when coolant gets cool completely, then recheck the coolant level in the reservoir tank for 2~3 days after replacing coolant.

    Coolant capacity:

    Approx. 5.5 L (1.45 U.S.gal., 5.81 U.S.qt., 4.48 lmp.qt.)
