Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.

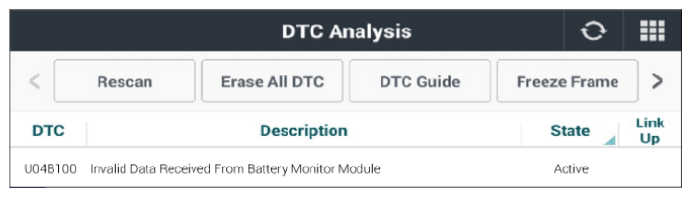

 Fig.1
G13292456Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
