Monitor DTC Status

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS.

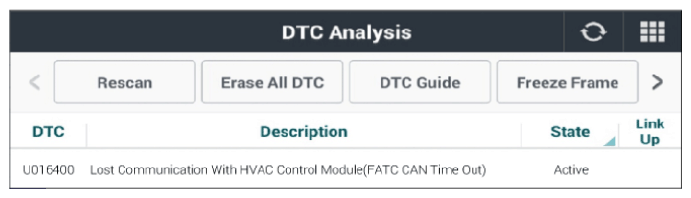

 Fig.1
G13292441Courtesy of KIA MOTORS AMERICA, INC.

Active Fault

History/Pending Fault
