Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

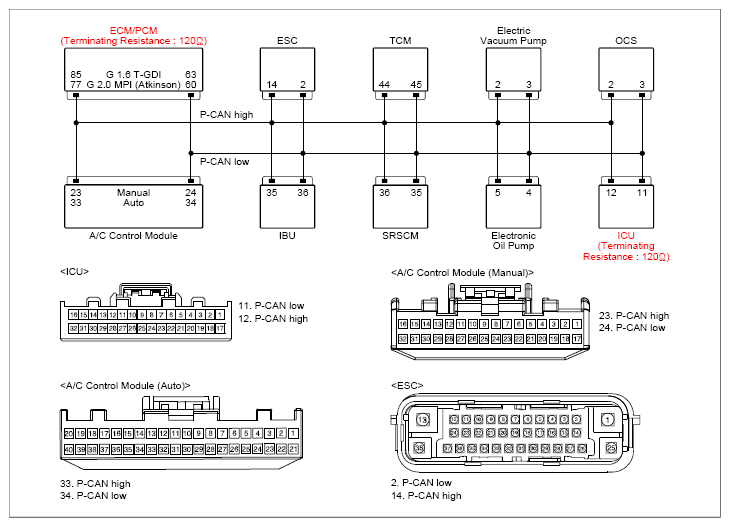

CAN COMMUNICATION LINE INSPECTION SPECIFICATION
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

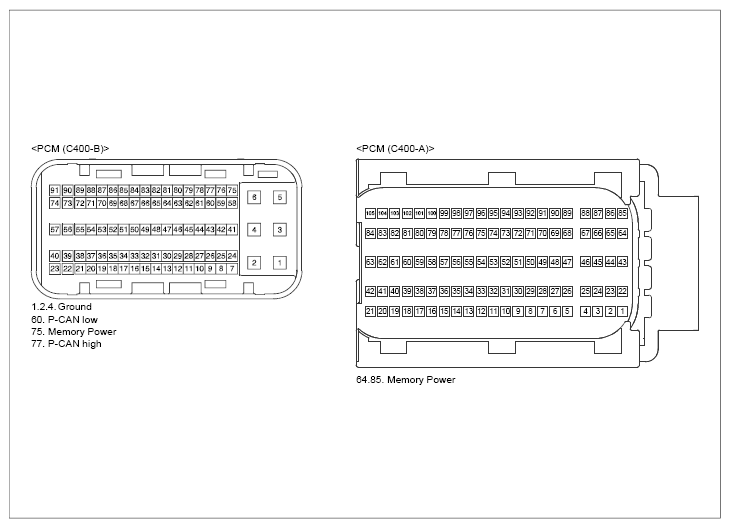

PCM connector | 77 (P-CAN high) | Chassis ground | - | Fig.1 |
| PCM connector | 60 (P-CAN low) | Chassis ground | - | ||
|
PCM connector | 77 (P-CAN high) | PCM connector | 60 (P-CAN low) | Approx. 120Ω |
| PCM connector | 77 (P-CAN high) | Chassis ground | - | ∞ (infinity)Ω | |
| PCM connector | 60 (P-CAN low) | Chassis ground | - | ∞ (infinity)Ω | |
|
PCM connector | 77 (P-CAN high) | Chassis ground | - | 0V |
| PCM connector | 60 (P-CAN low) | Chassis ground | - | 0V | |
|
PCM connector | 77 (P-CAN high) | ICU connector | 12 (P-CAN high) | Approx. below 1Ω |
| PCM connector | 60 (P-CAN low) | ICU connector | 11 (P-CAN low) | Approx. below 1Ω | |
| PCM connector (component side) | 77 (P-CAN high) | PCM connector (component side) | 60 (P-CAN low) | Approx. 120Ω | |
| ICU (component side) | 12 (P-CAN high) | ICU (component side) | 11 (P-CAN low) | Approx. 120Ω | |
Good
- Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "Verification of Repair " procedure.
No Good
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
