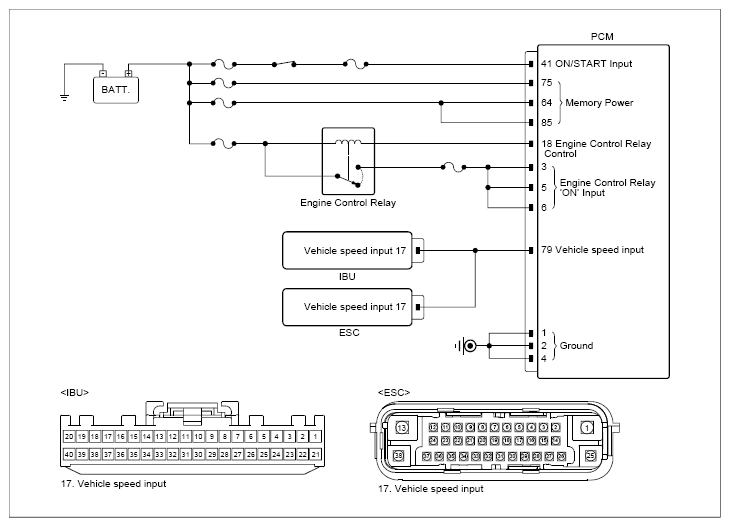

Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
PCM connector | 79 (vehicle speed input) | Chassis ground | - | ∞ (infinity)Ω |
| PCM connector | 79 (vehicle speed input) | IBU connector | 17 (vehicle speed input) | Approx. below 1Ω | |
| PCM connector | 79 (vehicle speed input) | ESC connector | 17 (vehicle speed input) | Approx. below 1Ω | |
Good
- Check for wheel speed sensor related failure in ESC system, and then perform applicable troubleshooting.
- If no problems were found with the circuits or connectors, replace the PCM and then go to "Verification of Repair " procedure.
No Good
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
