Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

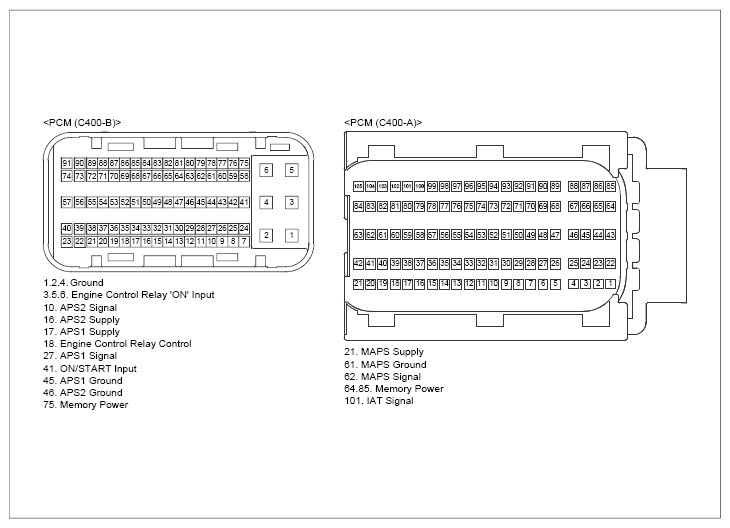

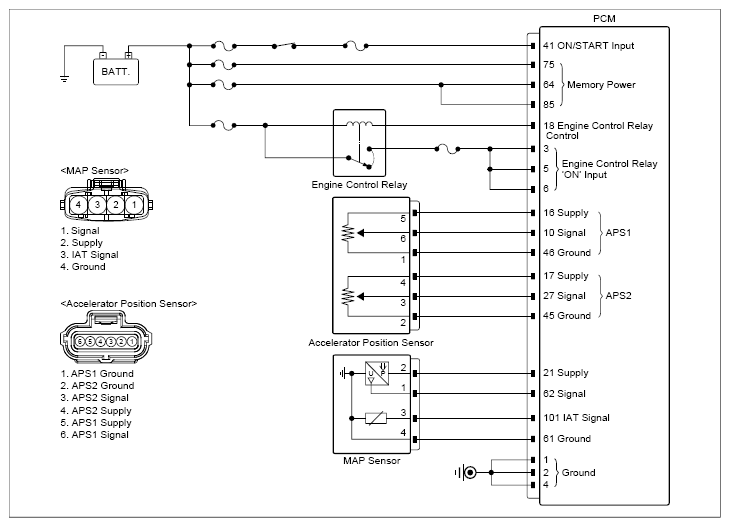

APS1 CIRCUIT INSPECTION SPECIFICATION
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
APS connector | 4 (APS1 supply) | Chassis ground | - | Approx. 5V |
|
APS connector | 2 (ground) | Chassis ground | - | Approx. below 1Ω |
| APS connector | 3 (signal) | Battery (+) terminal | - | ∞ (infinity)Ω | |
| APS connector | 3 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
|
APS connector | 3 (signal) | PCM connector | 27 (signal) | Approx. below 1Ω |
APS2 CIRCUIT INSPECTION SPECIFICATION
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
APS connector | 5 (APS2 supply) | Chassis ground | - | Approx. 5V |
|
APS connector | 1 (ground) | Chassis ground | - | Approx. below 1Ω |
| APS connector | 6 (signal) | Chassis ground | - | ∞ (infinity)Ω | |
| APS connector | 6 (signal) | Battery (+) terminal | - | ∞ (infinity)Ω | |
|
APS connector | 6 (signal) | PCM connector | 10 (signal) | Approx. below 1Ω |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
