Ignition Coil Inspection
WARNING: This page is about a different variant/trim than selected.
- Refer to
appropriate service information and visually and/or physically inspect following conditions;
- Damage, cracks, carbon and flashover.
- Poor connection or damaged connector.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

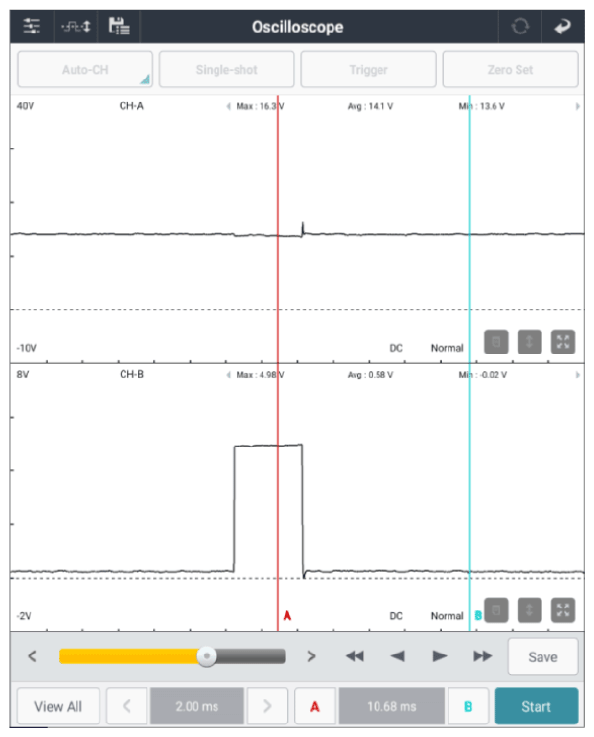

Ignition coils connector | 2 (power) | Chassis ground | - | Fig.1 |
| Ignition coils connector | 1 (control) | Chassis ground | - | ||
Good
- Go to "Spark Plug Inspection " procedure.
No Good
- Repair as necessary and than go to "Verification of Repair " procedure.
