Timing Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Reference | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

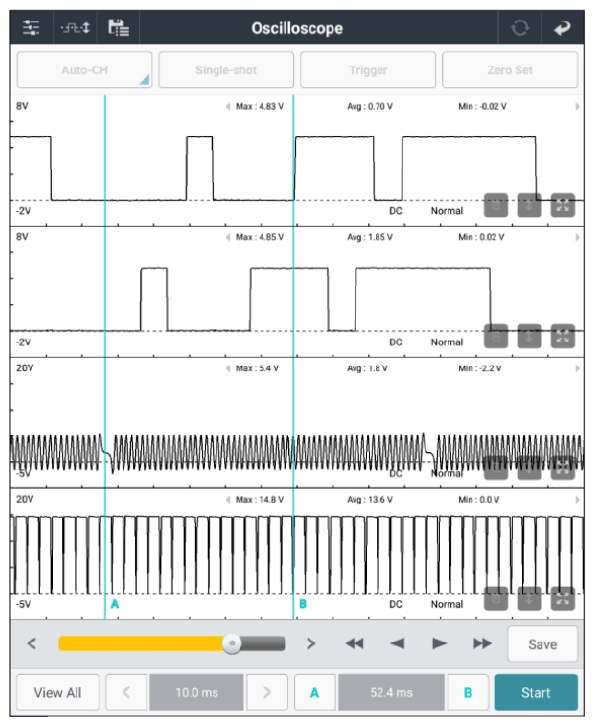

CKPS connector | 2 (signal) | CMPS - In connector | 3 (signal) | Fig.1 |
| CMPS - Ex connector | 3 (signal) | OCV - In connector | 1 (control) | ||
Good
- Go to "Ignition System Inspection " procedure.
No Good
- Repair as necessary and than go to "Verification of Repair " procedure.
