Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

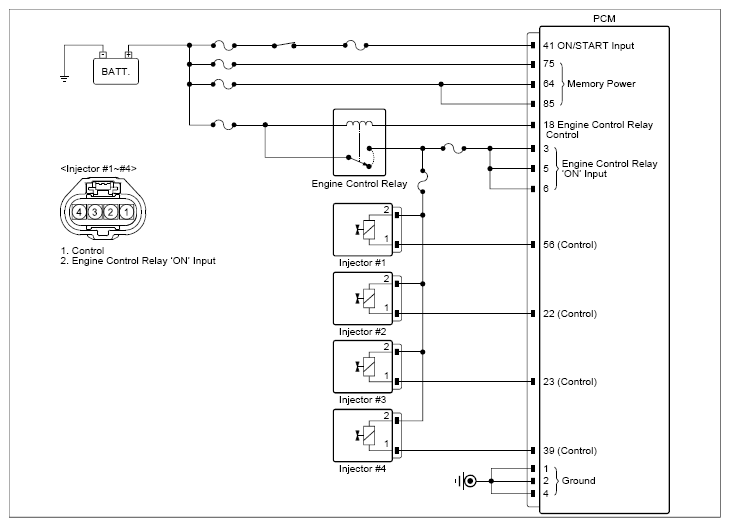

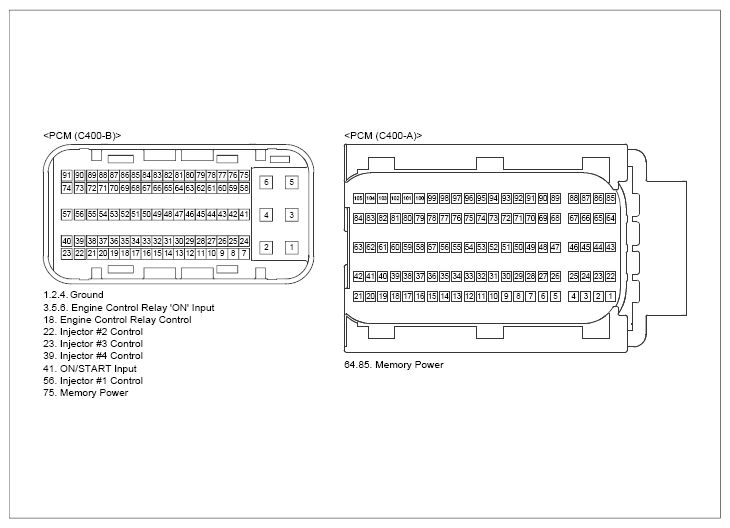

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Injector #2 connector | 2 (power) | Chassis ground | - | Approx. 12V |
|
Injector #2 connector | 1 (control) | Chassis ground | - | Approx. 5.76V |
|
Injector #2 connector | 1 (control) | Injector #2 connector | 2 (power) | ∞ (infinity)Ω |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
