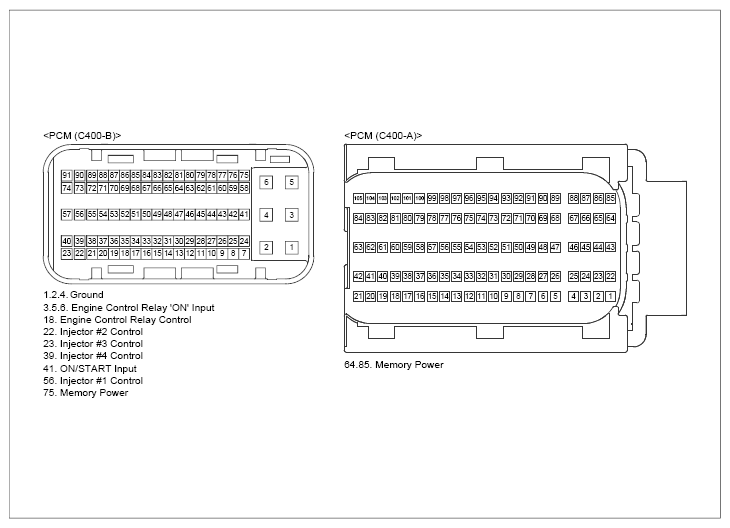

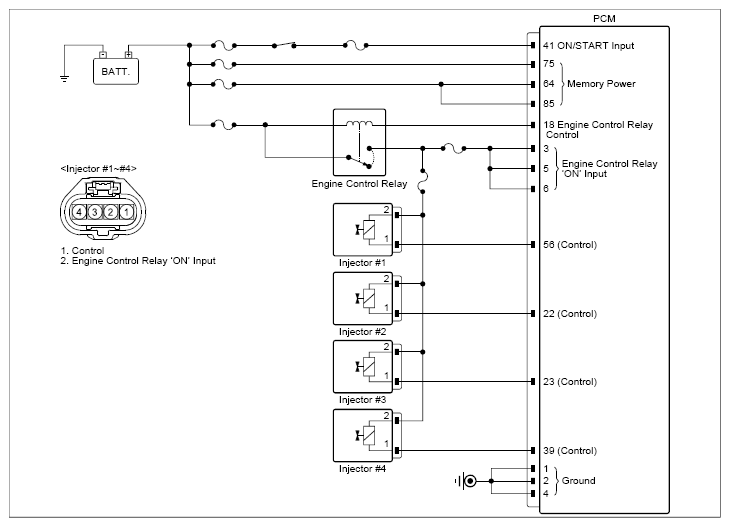

Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
Injector #1 connector | 2 (power) | Chassis ground | - | Approx. 12V |
|
Injector #1 connector | 1 (control) | Chassis ground | - | ∞ (infinity)Ω |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
