Monitor KDS Data
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|

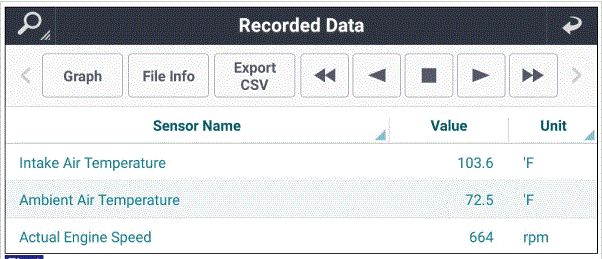

| 1. Engine "ON". | 1. Connect KDS to "Data Link Connector (DLC)". 2. Monitor parameters in "Current Data" with KDS. |

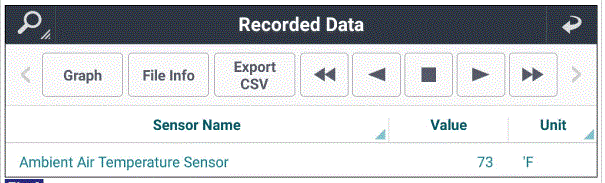

Fig.2 |
Good
• Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
No Good
• Go to "Wiring Inspection" procedure.
