Monitor DTC Status
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | Inspection Procedure | Reference |
|---|---|---|
| 1. Ignition "ON". | 1. Connect KDS to "Data Link Connector (DLC)". 2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS. |

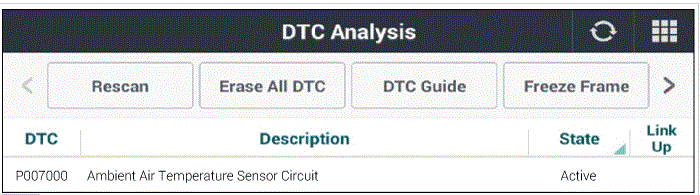

Fig.1 |
Active Fault
• Go to "Monitor KDS Data" procedure.
History/Pending Fault
• Go to ("Verification Of Repair ") procedure.
