Component Inspection

WARNING: This page is about a different variant/trim than selected.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".

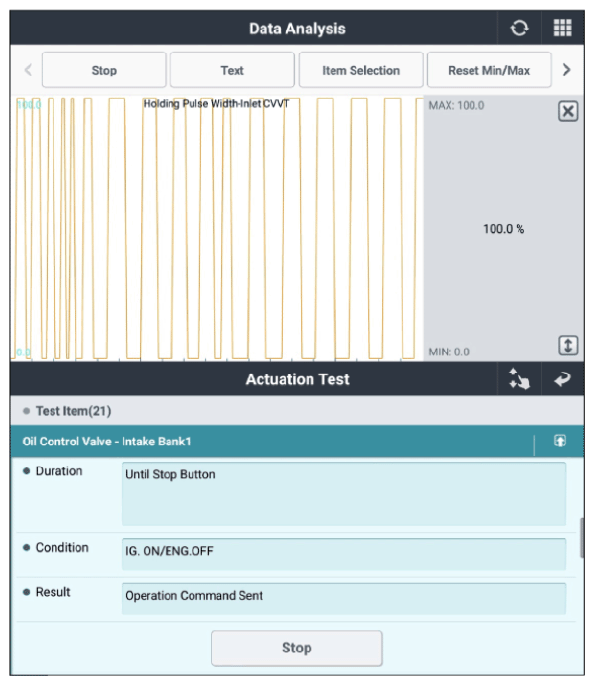

  2. Perform "Actuation Test" of concerned component with KDS.
 Fig.1
G13291271Courtesy of KIA MOTORS AMERICA, INC.

Good

  1. Go to "Verification of Repair " procedure.

No Good

  1. Go to "Inspect OCV - In (Bank1)" procedure.
Inspect OCV - In (Bank1)
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect OCV - In (Bank1) connector.
 OCV - In (Bank1) (component side) 2 (power) OCV - In (Bank1) (component side) 1 (control) Approx. 9.4 to 10.4Ω

Good

  1. Go to "Verification of Repair " procedure.

No Good

  1. Carefully re-do this troubleshooting guide steps.
  2. If no problems were found with the circuits or connectors, replace the OCV - In (Bank1) and go to "Verification of Repair " procedure.
