Circuit Inspection

WARNING: This page is about a different variant/trim than selected.
G13291257Courtesy of KIA MOTORS AMERICA, INC.

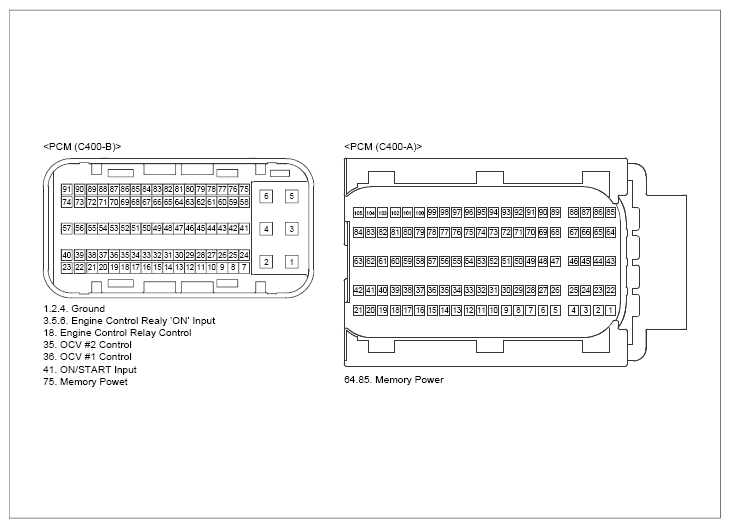

G13291258Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect OCV - In (Bank1) connector.
  3. Ignition "ON".
 OCV - In (Bank1) connector 2 (power) Chassis ground - B+
OCV - In (Bank1) connector 1 (control) Chassis ground - Approx. 1.4V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 OCV - In (Bank1) connector 1 (control) Chassis ground - ∞ (infinity)Ω

Good

  1. Go to "Component Inspection " procedure.

No Good

  1. Repair or replace as necessary and then go to "Verification of Repair " procedure.
