Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

G13292212

Courtesy of KIA MOTORS AMERICA, INC.

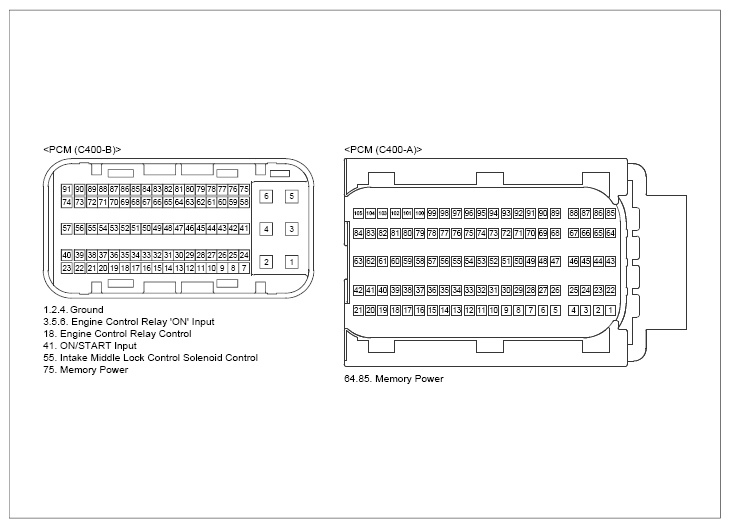

G13292213

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component.	Intake middle lock control solenoid connector	2 (control)	PCM connector	55 (control)	Approx. below 1Ω
	Intake middle lock control solenoid connector	1 (power)	Chassis ground	-	∞ (infinity)Ω
	Intake middle lock control solenoid connector	2 (control)	Chassis ground	-	∞ (infinity)Ω
Ignition "OFF". Disconnect the electrical connector (s) from the concerned component. Ignition "ON".	Intake middle lock control solenoid connector	1 (power)	Chassis ground	-	B+

Good

Go to "Component Inspection " procedure.

No Good

Repair or replace as necessary and then go to "Verification of Repair " procedure.
