Circuit Inspection
WARNING: This page is about a different variant/trim than selected.

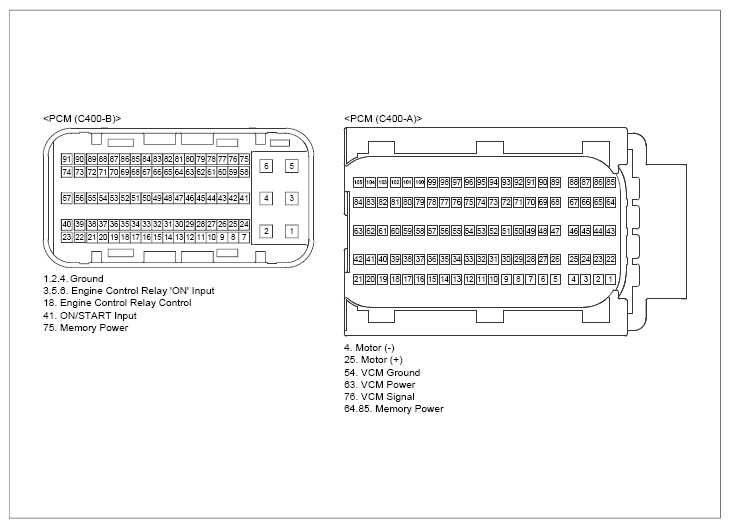

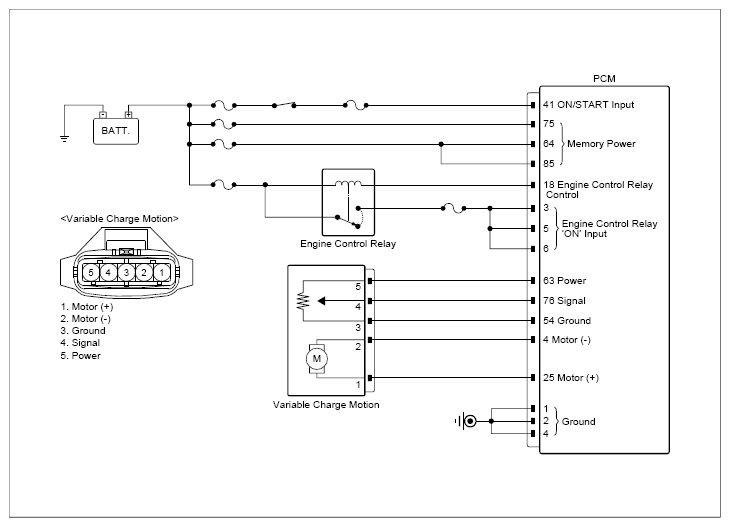

| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
VCM connector | 1 (motor +) | Chassis ground | - | Approx. 11.5V |
| VCM connector | 2 (motor -) | Chassis ground | - | Approx. 11.2V | |
| VCM connector | 3 (ground) | Chassis ground | - | 0V | |
| VCM connector | 4 (signal) | Chassis ground | - | Approx. 4.8V | |
| VCM connector | 5 (power) | Chassis ground | - | Approx. 5V | |
|
VCM connector | 1 (motor +) | Chassis ground | - | ∞ (infinity)Ω |
| VCM connector | 2 (motor -) | Chassis ground | - | ∞ (infinity)Ω | |
| VCM connector | 3 (ground) | PCM connector | 54 (ground) | Approx. below 1Ω | |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
