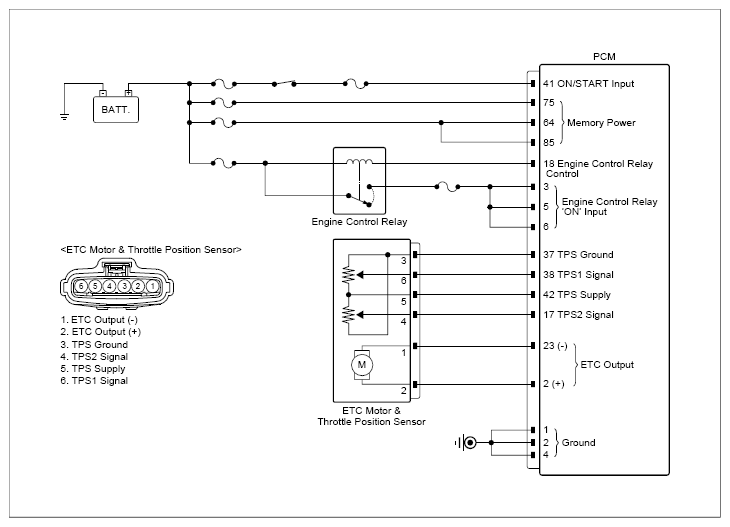

Circuit Inspection
WARNING: This page is about a different variant/trim than selected.
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|
ETC motor & TPS connector | 2 (motor +) | Chassis ground | - | ∞ (infinity)Ω |
| ETC motor & TPS connector | 2 (motor +) | Battery (+) terminal | - | ∞ (infinity)Ω | |
|

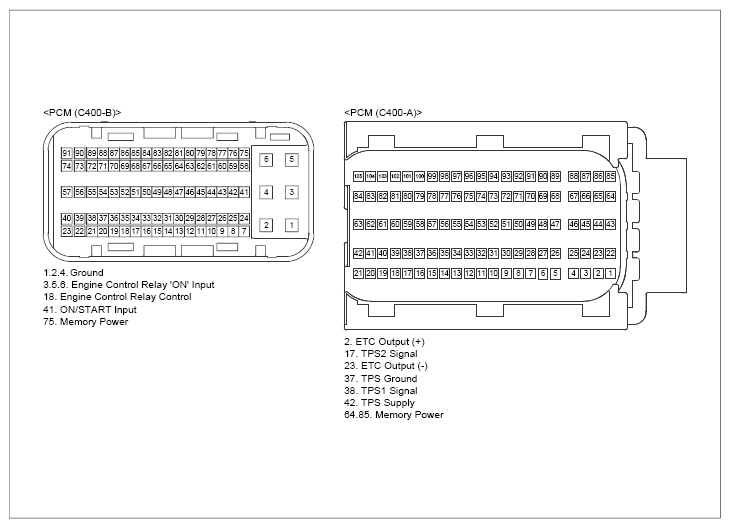

ETC motor & TPS connector | 2 (motor +) | PCM connector | 2 (motor +) | Approx. below 1Ω |
|
ETC motor & TPS connector | 1 (motor -) | Chassis ground | - | ∞ (infinity)Ω |
| ETC motor & TPS connector | 1 (motor -) | Battery (+) terminal | - | ∞ (infinity)Ω | |
|
ETC motor & TPS connector | 1 (motor -) | PCM connector | 23 (motor -) | Approx. below 1Ω |
Good
- Go to "Component Inspection " procedure.
No Good
- Repair or replace as necessary and then go to "Verification of Repair " procedure.
