Circuit Inspection

WARNING: This page is about a different variant/trim than selected.

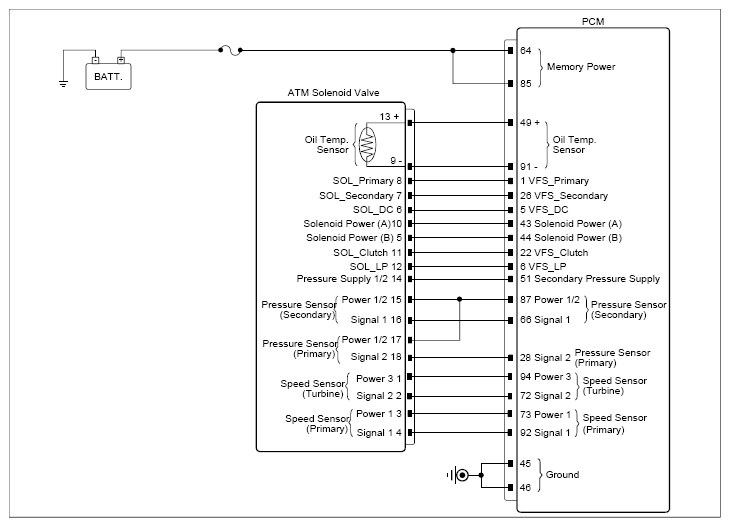

G13291999

Courtesy of KIA MOTORS AMERICA, INC.

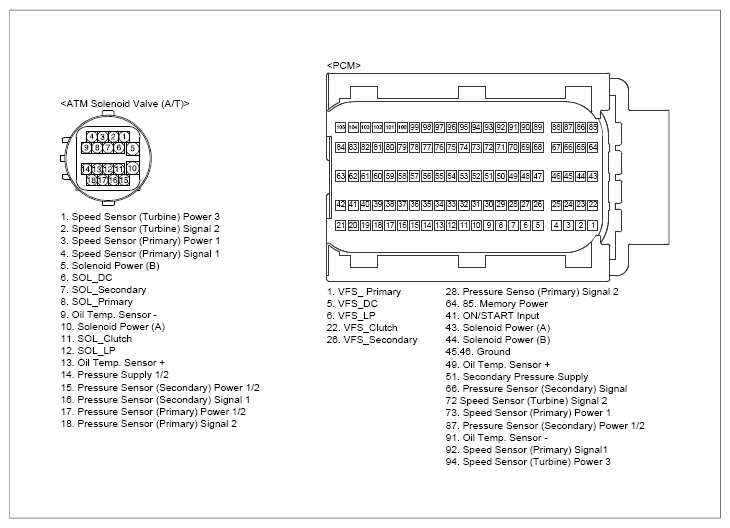

G13292000

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Disconnect the electrical connector(s) from the concerned component. Ignition "ON".	PCM connector	64, 85 (memory power)	Chassis ground	-	B+
	ATM solenoid valve connector	5, 10 (power)	Chassis ground	-	Approx. 2.5V
Ignition "OFF". Disconnect battery (-) cable. Disconnect the electrical connector(s) from the concerned component.	PCM connector	45, 46 (ground)	Chassis ground	-	Approx. below 1Ω

Good

Carefully re-do this troubleshooting guide steps.
If problem still occurs, replace PCM and do "S/W Management - Oil-pressure Characteristics Back UP & Input (TCU Replacement)" and then go to "Verification of Repair " procedure.
Perform the S/W management of P060100 code and then, go to "Verification of Repair " procedure.

No Good

Repair open or short in circuit and then go to "Verification of Repair " procedure.
